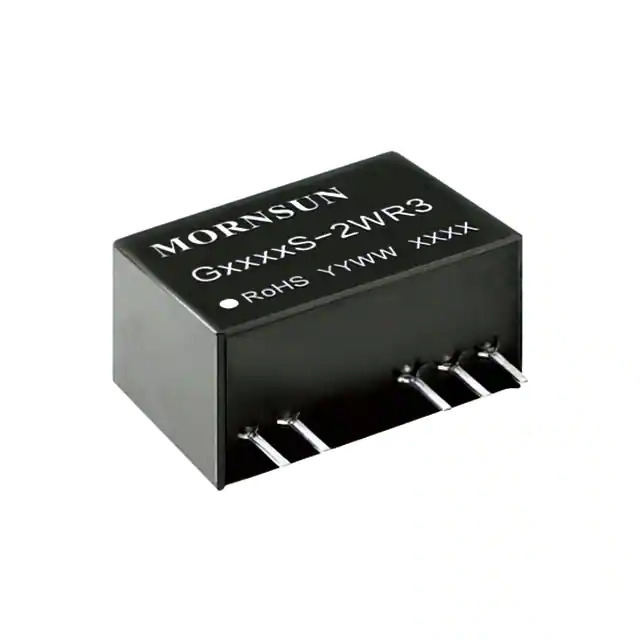

Same model may have multiple batches, images only for reference.

G1212S-2WR3

Get a Quote

Part No	G1212S-2WR3
Catalog	Power Supplies Board Mount DCDC Converters
Description	ISOLATED MODULE DC DC CONVERTER2
Sample
Rohs State
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount - DC DC Converters
Mfr	Mornsun America, LLC
Series	G_S-2WR3 (2W)
Package	Tube
Product Status	Active
Type	Isolated Module
Number of Outputs	2
Voltage - Input (Min)	10.8V
Voltage - Input (Max)	13.2V
Voltage - Output 1	12V
Voltage - Output 2	-12V
Voltage - Output 3	-
Voltage - Output 4	-
Current - Output (Max)	83mA, 83mA
Power (Watts)	1.992 W
Voltage - Isolation	4.2 kV
Applications	Household Appliances, ITE (Commercial)
Features	-
Temperature Range - Operating	-40°C ~ 85°C (With Derating)
Efficiency	83%
Mounting Type	Through Hole
Package / Case	7-SIP Module, 5 Leads
Size / Dimension	0.77" L x 0.39" W x 0.94" H (19.5mm x 9.8mm x 24.0mm)
Supplier Device Package	-
Control Features	-
Approval Agency	-
Standard Number	60335-1; 62368-1
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.40.9580
Win Source Part Number	1373090-G1212S-2WR3
Ultra Librarian 3D Model	Ultra Librarian G1212S-2WR3 CAD Model

Alternative Products

Description

The G1212S-2WR3 is an isolated power supply module manufactured by Mornsun America, LLC.

Series: G_S-2WR3
Package: 7-SIP Module
Leads: 5
Applications: Household Appliances, ITE (Commercial)
Size: 0.77" L x 0.39" W x 0.94" H
Output Voltages: 12V, -12V
Output Current: 83mA (Max, per output)
Power Rating: 1.992W
Input Voltage: 10.8V ~ 13.2V
Efficiency: 83%
Voltage Isolation: 4.2kV
Safety Standards: 60335-1, 62368-1
Product Status: Active
