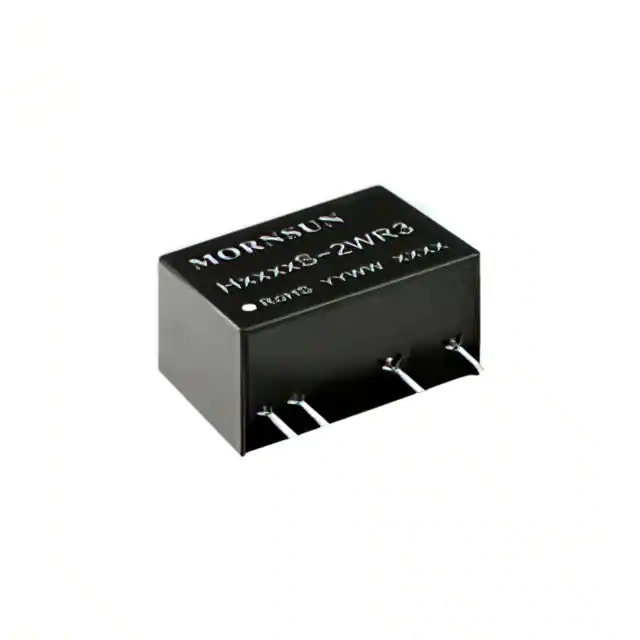

H1212S-2WR3 MORNSUN Science& Technology Ltd.
Same model may have multiple batches, images only for reference.

H1212S-2WR3

Part No H1212S-2WR3
Catalog Power Supplies Board Mount DCDC Converters
Description ISOLATED MODULE DC DC CONVERTER1
Sample
Rohs State rohs
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Mornsun America, LLC
Series H_S-2WR3 (2W)
Package Tube
Product Status Active
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 10.8V
Voltage - Input (Max) 13.2V
Voltage - Output 1 12V
Voltage - Output 2 -
Voltage - Output 3 -
Voltage - Output 4 -
Current - Output (Max) 167mA
Power (Watts) 2.004 W
Voltage - Isolation 4.2 kV
Applications Household Appliances, ITE (Commercial)
Features -
Temperature Range - Operating -40°C ~ 85°C (With Derating)
Efficiency 84%
Mounting Type Through Hole
Package / Case 7-SIP Module, 4 Leads
Size / Dimension 0.77" L x 0.39" W x 0.94" H (19.5mm x 9.8mm x 24.0mm)
Supplier Device Package -
Control Features -
Approval Agency -
Standard Number 60335-1; 62368-1
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 1373112-H1212S-2WR3
Ultra Librarian 3D Model Ultra Librarian H1212S-2WR3 CAD Model

Description

The H1212S-2WR3 is a DC-DC converter module designed for board mount applications.

  • Series: H_S-2WR3
  • Manufacturer: Mornsun America, LLC
  • Isolation: Yes
  • Operating Temperature: -40°C to 85°C (with derating)
  • Size / Dimension: 0.77" L x 0.39" W x 0.94" H (19.5mm x 9.8mm x 24.0mm)
  • Application: Household Appliances and ITE (Commercial) devices
  • Current - Output (Max): 167mA
  • Power (Watts): 2.004W
  • Voltage - Input: 10.8V to 13.2V
  • Voltage - Output 1: 12V
  • Voltage - Isolation: 4.2kV
  • Standard Numbers: 60335-1 and 62368-1
  • Efficiency: 84%
