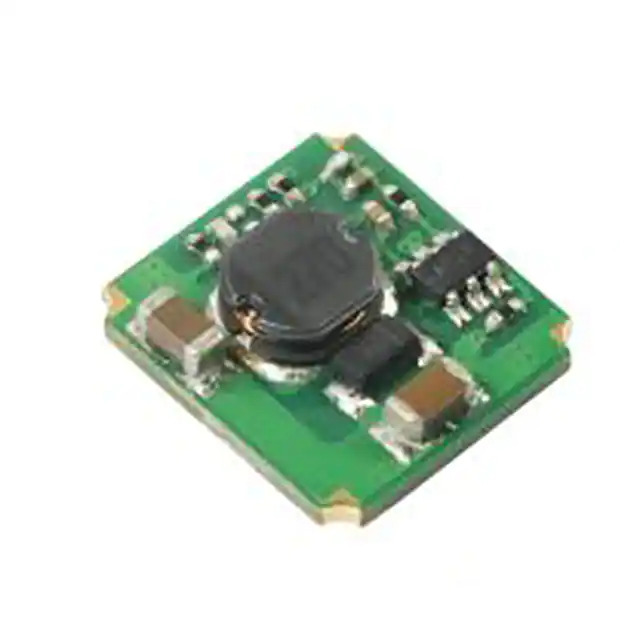

K7805JT-500R3 MORNSUN Science& Technology Ltd.
Same model may have multiple batches, images only for reference.

K7805JT-500R3

Part No K7805JT-500R3
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 5V 2.5W
Sample
Rohs State rohs
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Mornsun America, LLC
Series K7805JT-500R3
Package Tape & Reel
Product Status Active
Type Non-Isolated PoL Module
Number of Outputs 1
Voltage - Input (Min) 6.5V
Voltage - Input (Max) 36V
Voltage - Output 1 5V
Voltage - Output 2 -
Voltage - Output 3 -
Voltage - Output 4 -
Current - Output (Max) 500mA
Power (Watts) 2.5 W
Applications ITE (Commercial)
Features Remote On/Off, SCP
Temperature Range - Operating -40°C ~ 85°C
Efficiency 90%
Mounting Type Surface Mount
Package / Case 4-SMD Module
Size / Dimension 0.53" L x 0.49" W x 0.14" H (13.5mm x 12.5mm x 3.5mm)
Supplier Device Package -
Control Features -
Approval Agency CE
Base Product Number K7805
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 1372834-K7805JT-500R3
Ultra Librarian 3D Model Ultra Librarian K7805JT-500R3 CAD Model

Description

The K7805JT-500R3 is a non-isolated PoL (Point of Load) module manufactured by Mornsun America, LLC.

  • Mounting Type: Surface Mount
  • Package: 4-SMD
  • Voltage - Input: 6.5V ~ 36V
  • Voltage - Output: 5V
  • Current - Output Max: 500mA
  • Power (Watts) - Max: 2.5W
  • Features: Remote On/Off, SCP
  • Operating Temperature: -40°C ~ 85°C
  • Efficiency: 90%
  • Application: ITE (Commercial)
  • Size / Dimension: 0.53" L x 0.49" W x 0.14" H (13.5mm x 12.5mm x 3.5mm)
  • REACH Status: REACH unaffected
  • ECCN: EAR99
  • Approvals: CE
