Same model may have multiple batches, images only for reference.

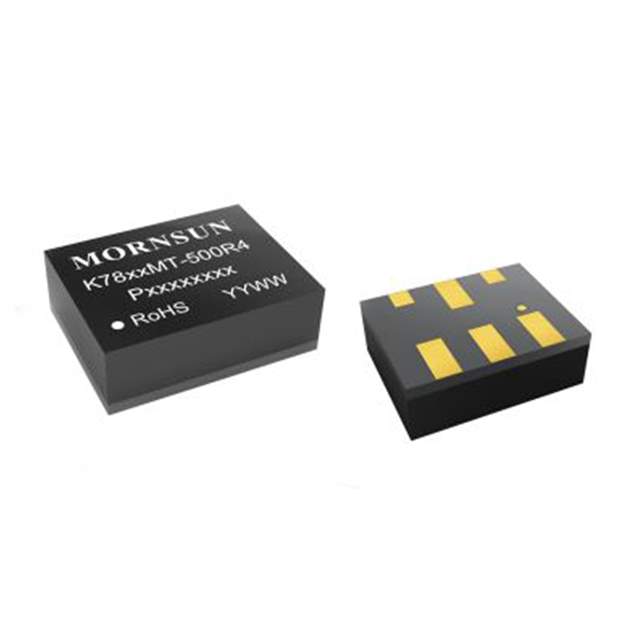

K7812MT-500R4 Real Image
Same model may have multiple batches, images only for reference.

K7812MT-500R4

Part No K7812MT-500R4
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-12V 7.8W  /  Non-Isolated PoL Module DC DC Converter 1 Output 12V, -12V 500mA, 150mA 8V, 15V - 24V, 36V Input
Sample
Rohs State rohs
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Mfr Mornsun America, LLC
Series K78-R4
Package Tape & Reel
Type Non-Isolated PoL Module
Number of Outputs 1
Voltage - Input (Min) 8V, 15V
Voltage - Input (Max) 24V, 36V
Voltage - Output 1 12V, -12V
Current - Output (Max) 500mA, 150mA
Power (Watts) 7.8 W
Applications ITE (Commercial)
Features SCP
Temperature Range - Operating -40°C ~ 105°C
Efficiency 92%
Mounting SMD (SMT)
Package / Case 6-SMD Module
Dimension 0.35" L x 0.28" W x 0.12" H (9.0mm x 7.0mm x 3.1mm)
Approval Agency CE
Base Product Number K7812
MSL Level 3 (168 Hours)
ECCN EAR99
HTSUS 8504.40.9580
Other Names 2725-K7812MT-500R4TR,2725-K7812MT-500R4DKR,2725-K7812MT-500R4CT
Standard Package 1,200
Win Source Part Number 1196306-K7812MT-500R4
Ultra Librarian 3D Model Ultra Librarian K7812MT-500R4 CAD Model

Description

The Mornsun America, LLC K7812MT-500R4 is a DC DC converter from Mornsun America, LLC.

  • Series: K78-R4
  • Type: non-isolated PoL module
  • Package: tape & reel
  • Mounting: SMD (SMT)
  • Power (watts): 7.8 W
  • Efficiency: 92%
  • Voltage Input (min): 8V
  • Voltage Input (max): 24V
  • Voltage Output 1: 12V
  • Voltage Output 2: -12V
  • Temperature Range: -40°C ~ 105°C
  • Dimension: 0.35" L x 0.28" W x 0.12" H (9.0mm x 7.0mm x 3.1mm)
