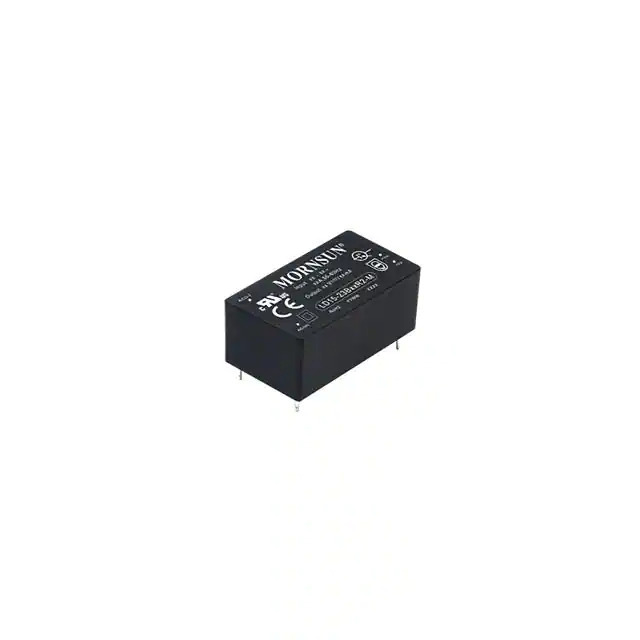

Same model may have multiple batches, images only for reference.
LD15-23B05R2-M MORNSUN Science& Technology Ltd.
Same model may have multiple batches, images only for reference.

LD15-23B05R2-M

Part No LD15-23B05R2-M
Catalog Board Mount AC DC Converters
Description ENCLOSED AC DC CONVERTERS 1 OUTP
Sample
Rohs State rohs
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - AC DC Converters
Mfr Mornsun America, LLC
Series LD15-23BxxR2-M (15W)
Package Bulk
Product Status Active
Type Enclosed
Number of Outputs 1
Voltage - Input 85 ~ 305 VAC, 100 ~ 430 VDC
Voltage - Output 1 5V
Voltage - Output 2 -
Voltage - Output 3 -
Voltage - Output 4 -
Current - Output (Max) 3A
Power (Watts) 15 W
Applications Household Appliances, ITE (Commercial), Medical
Features Universal Input
Temperature Range - Operating -40°C ~ 85°C (With Derating)
Efficiency 85%
Mounting Type Through Hole
Package / Case 5-DIP Module, 4 Leads
Size / Dimension 1.87" L x 1.06" W x 0.93" H (47.6mm x 26.8mm x 23.5mm)
Approval Agency CB, CE, cURus, UL
Standard Number 60335-1; 60601-1; 62368-1
Line Regulation ±0.5%
Load Regulation ±1%
Weight -
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9510
Win Source Part Number 1373108-LD15-23B05R2-M
Ultra Librarian 3D Model Ultra Librarian LD15-23B05R2-M CAD Model

Description

The LD15-23B05R2-M is a high-quality AC-DC converter manufactured by Mornsun America, LLC.

  • Series: LD15-23BxxR2-M
  • Type: Enclosed
  • Input Type: Universal Input
  • Application: Household Appliances, ITE (Commercial), Medical Devices
  • Package / Case: 5-DIP Module, 4 Leads
  • Mounting Type: Through Hole
  • Size / Dimension: 1.87" L x 1.06" W x 0.93" H
  • Voltage - Output (Max): 5V
  • Current - Output (Max): 3A
  • Power (Watts): 15W
  • Efficiency: 85%
  • Approvals: CB, CE, cURus, UL
