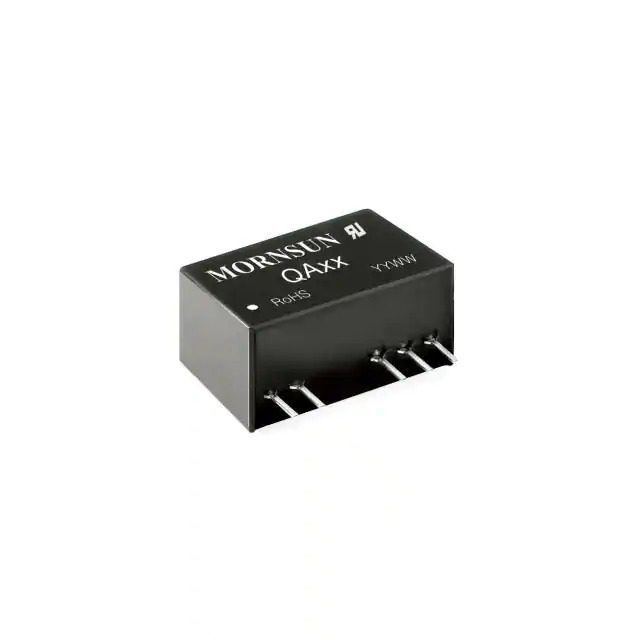

Same model may have multiple batches, images only for reference.
QA01-17 MORNSUN Science& Technology Ltd.
Same model may have multiple batches, images only for reference.

QA01-17

Part No QA01-17
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER FOR IGBT DRIVER,
Sample
Rohs State Need to verify
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Mornsun America, LLC
Series QA
Package Tube
Product Status Active
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 14.5V
Voltage - Input (Max) 15.5V
Voltage - Output 1 17V
Voltage - Output 2 -8.7V
Voltage - Output 3 -
Voltage - Output 4 -
Current - Output (Max) 80mA, 40mA
Voltage - Isolation 3 kV
Applications ITE (Commercial)
Features -
Temperature Range - Operating -40°C ~ 105°C (With Derating)
Efficiency 80%
Mounting Type Through Hole
Package / Case 7-SIP Module, 5 Leads
Size / Dimension 0.77" L x 0.39" W x 0.49" H (19.5mm x 9.8mm x 12.5mm)
Supplier Device Package -
Control Features -
Approval Agency CB, CE, cURus
Standard Number 60950-1; 62368-1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 1373004-QA01-17
Ultra Librarian 3D Model Ultra Librarian QA01-17 CAD Model

Description

The QA series by Mornsun America, LLC offers isolated module power supplies for various applications.

  • Package / Case: 7-SIP
  • Number of Leads: 5
  • Mounting Type: Through Hole
  • Operating Temperature: -40°C to 105°C with derating
  • Input Voltage Range: 14.5V to 15.5V
  • Number of Outputs: 2
  • Output Voltage: 17V, -8.7V
  • Output Current: 80mA and 40mA respectively (Max)
  • Voltage Isolation: 3 kV
  • Efficiency: 80%
  • Approval Agency: CB, CE, cURus
  • Size / Dimension: 0.77" L x 0.39" W x 0.49" H (19.5mm x 9.8mm x 12.5mm)
  • REACH Compliance: Unaffected
  • ECCN: EAR99
