Same model may have multiple batches, images only for reference.

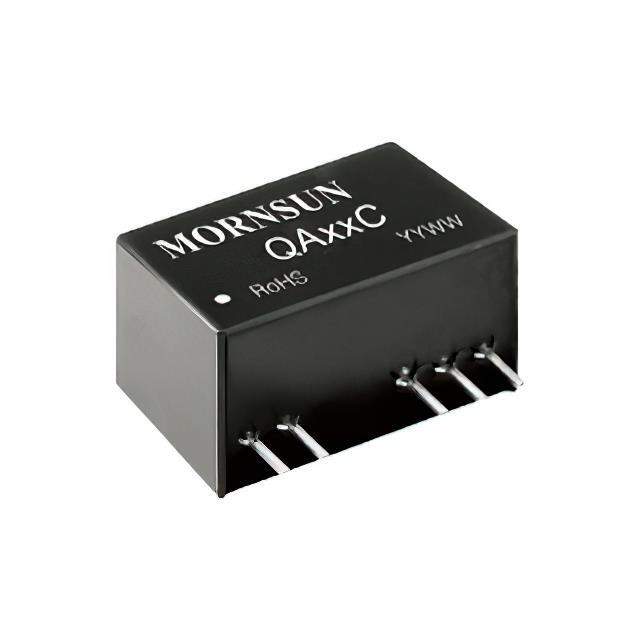

QA01C-18 Real Image
Same model may have multiple batches, images only for reference.

QA01C-18

Part No QA01C-18
Catalog Power Supplies Board Mount DCDC Converters
Description DC/DC CONVERTER 15V-18/3.0V 2.1W  /  Isolated Module DC DC Converter 2 Output 18V -3V 100mA, 100mA 13.5V - 16.5V Input
Sample
Rohs State rohs
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Mfr Mornsun America, LLC
Series QAxCx
Package Tube
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 13.5V
Voltage - Input (Max) 16.5V
Voltage - Output 1 18V
Voltage - Output 2 -3V
Current - Output (Max) 100mA, 100mA
Voltage - Isolation 6 kV
Applications ITE (Commercial)
Temperature Range - Operating -40°C ~ 105°C (With Derating)
Efficiency 79%
Mounting Type Through Hole
Package / Case 7-SIP Module, 5 Leads
Dimension 0.77" L x 0.39" W x 0.49" H (19.5mm x 9.8mm x 12.5mm)
Approval Agency CB, CE, cURus
Standard Number 60950-1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
Other Names 2725-QA01C-18
Standard Package 200
Win Source Part Number 1086589-QA01C-18
Ultra Librarian 3D Model Ultra Librarian QA01C-18 CAD Model

Description

The QA01C-18 from Mornsun America, LLC is an isolated module DC-DC converter from the QAxCx series.

  • Series: QAxCx
  • Number of Outputs: Two
  • Maximum Output Current: 100mA per output
  • Input Voltage Range: 13.5V to 16.5V
  • Output Voltage (Output 1): 18V
  • Output Voltage (Output 2): -3V
  • Efficiency: 79%
  • Description: With an efficiency of 79%, the QA01C-18 is a reliable choice for your power supply needs. in the open market.
