Same model may have multiple batches, images only for reference.

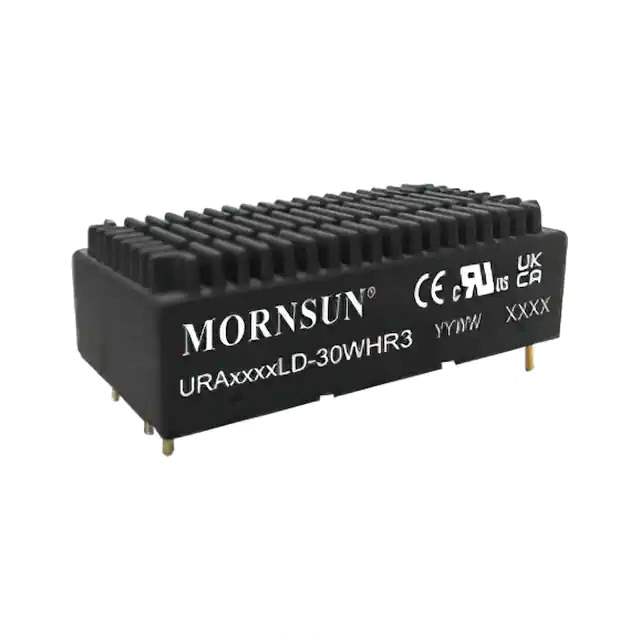

URA2405LD-30WR3 Real Image
Same model may have multiple batches, images only for reference.

URA2405LD-30WR3

Part No URA2405LD-30WR3
Catalog Power Supplies Board Mount DCDC Converters
Description ISOLATED MODULE DC DC CONVERTER
Sample
Rohs State rohs
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr MORNSUN Science& Technology Ltd.
Series URA_LD-30WR3 (30W)
Package Tube
Product Status Active
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 9V
Voltage - Input (Max) 36V
Voltage - Output 1 5V
Voltage - Output 2 -5V
Current - Output (Max) 3A, 3A
Power (Watts) 30 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features Adjustable Output
Temperature Range - Operating -40°C ~ 80°C (With Derating)
Efficiency 86%
Mounting Type Through Hole
Package / Case 6-DIP Module
Size / Dimension 2.00" L x 1.00" W x 0.46" H (50.8mm x 25.4mm x 11.8mm)
Approval Agency CB, CE, cURus, UKCA
Standard Number 62368-1; 60950-1
Standard Package 19 pcs
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 1103413-URA2405LD-30WR3
Ultra Librarian 3D Model Ultra Librarian URA2405LD-30WR3 CAD Model

Description

The URA_LD-30WR3 (30W) is an isolated module DC-DC converter suitable for power supplies in the category of power supplies - board mount - DC DC converters.

  • Features: adjustable output
  • Package: tube
  • Dimensions: 2.00" L x 1.00" W x 0.46" H (50.8mm x 25.4mm x 11.8mm)
  • Applications: ITE (Commercial)
  • Standard Package: 19 pcs
  • Power Rating: 30W
  • Outputs: two outputs with a maximum output current of 3A each
  • Input Voltage: 9V to 36V
  • Output Voltages: 5V and -5V
  • Efficiency: 86%
  • Mounting: through-hole
  • Temperature Range: -40°C to 80°C (with derating)
  • Approvals: CB, CE, cURus, and UKCA
  • Standard Numbers: 62368-1 and 60950-1
