Same model may have multiple batches, images only for reference.

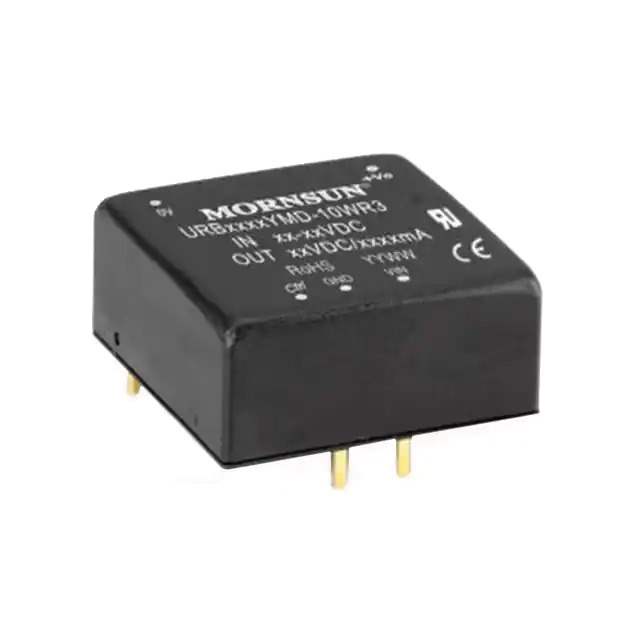

URA2405YMD-6WR3 Real Image
Same model may have multiple batches, images only for reference.

URA2405YMD-6WR3

Part No URA2405YMD-6WR3
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-5V 6W
Sample
Rohs State rohs
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr MORNSUN Science& Technology Ltd.
Series URA_YMD-6WR3 (6W)
Package Tube
Product Status Active
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 9V
Voltage - Input (Max) 36V
Voltage - Output 1 5V
Voltage - Output 2 -5V
Current - Output (Max) 600mA, 600mA
Power (Watts) 6 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Temperature Range - Operating -40°C ~ 85°C (With Derating)
Efficiency 83%
Mounting Type Through Hole
Package / Case 5-DIP Module
Size / Dimension 1.00" L x 1.00" W x 0.46" H (25.4mm x 25.4mm x 11.7mm)
Approval Agency CB, CE, cURus
Base Product Number URA2405
Standard Package 19 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 695445-URA2405YMD-6WR3
Ultra Librarian 3D Model Ultra Librarian URA2405YMD-6WR3 CAD Model

Description

The URA2405YMD-6WR3 is a 6W isolated module DC-DC converter from MORNSUN Science & Technology Ltd.

  • Series: URA_YMD-6WR3
  • Application: designed for power supplies in board mount applications
  • Size: 1.00" L x 1.00" W x 0.46" H
  • Voltage Input Range: 9V to 36V
  • Output Voltages: 5V and -5V
  • Maximum Output Current: 600mA
  • Efficiency: 83%
  • Voltage Isolation: 1.5 kV
  • Application: ITE (Commercial)
  • Standard Package: 19 pcs
  • Compliance: CE standards
  • Temperature Range: -40°C to 85°C (with derating)
