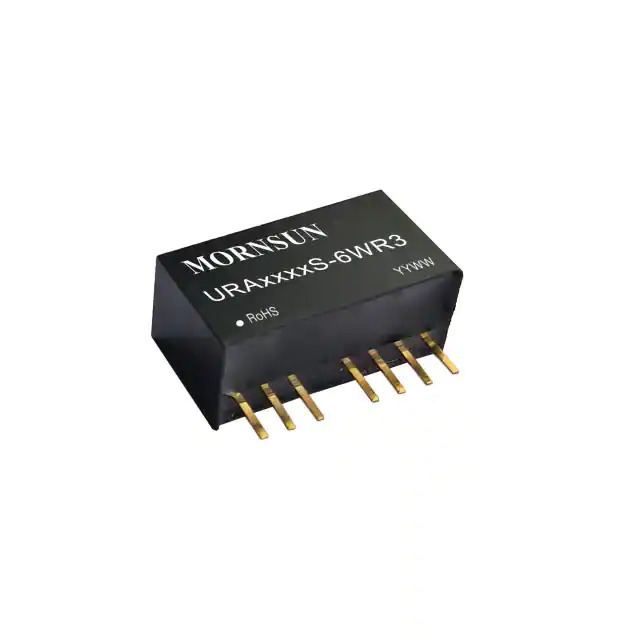

URA2409S-6WR3 MORNSUN Science& Technology Ltd.
Same model may have multiple batches, images only for reference.

URA2409S-6WR3

Part No URA2409S-6WR3
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-9V 6W
Sample
Rohs State Need to verify
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Mornsun America, LLC
Series URA2409S-6WR3 (6W)
Package Tube
Product Status Active
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 9V
Voltage - Input (Max) 36V
Voltage - Output 1 9V
Voltage - Output 2 -9V
Voltage - Output 3 -
Voltage - Output 4 -
Current - Output (Max) 333mA, 333mA
Power (Watts) 5.9 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features -
Temperature Range - Operating -40°C ~ 85°C (With Derating)
Efficiency 83%
Mounting Type Through Hole
Package / Case 8-SIP Module, 7 Leads
Size / Dimension 0.87" L x 0.37" W x 0.47" H (22.0mm x 9.5mm x 12.0mm)
Supplier Device Package -
Control Features -
Approval Agency CE, UKCA
Standard Number 62368-1
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 1372838-URA2409S-6WR3
Ultra Librarian 3D Model Ultra Librarian URA2409S-6WR3 CAD Model

Description

The URA2409S-6WR3 is a 6W isolated module DC-DC converter from Mornsun America, LLC.

  • Application: Power Supplies - Board Mount
  • Operating Temperature: -40°C ~ 85°C with derating
  • Voltage - Input (Max): 36V
  • Voltage - Input (Min): 9V
  • Voltage - Output 1: 9V
  • Voltage - Output 2: -9V
  • Efficiency: 83%
  • Voltage - Isolation: 1.5 kV
  • Package / Case: 8-SIP Module, 7 Leads
  • Mounting Type: Through Hole
  • Application: ITE (Commercial)
  • Approvals: CE, UKCA
