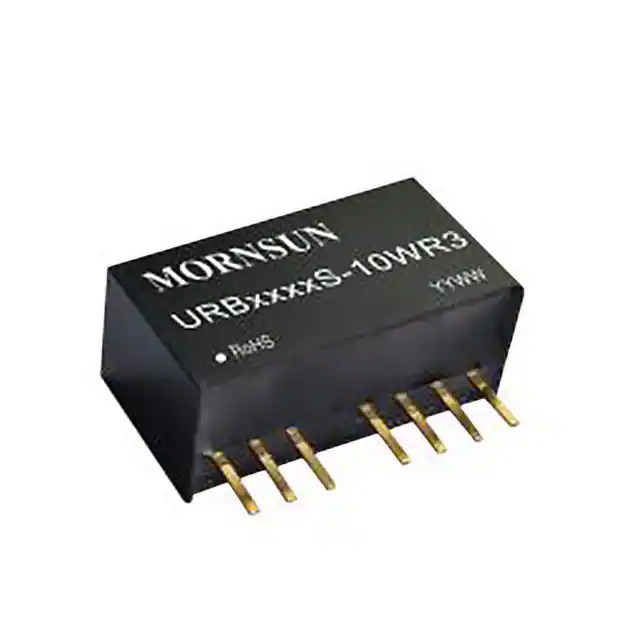

Same model may have multiple batches, images only for reference.

URB2424S-10WR3

Get a Quote

Part No	URB2424S-10WR3
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 24V 10W
Sample
Rohs State
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount - DC DC Converters
Mfr	Mornsun America, LLC
Series	URB2424S-10WR3 (10W)
Package	Tube
Product Status	Active
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	9V
Voltage - Input (Max)	36V
Voltage - Output 1	24V
Voltage - Output 2	-
Voltage - Output 3	-
Voltage - Output 4	-
Current - Output (Max)	417mA
Power (Watts)	10 W
Voltage - Isolation	1.5 kV
Applications	ITE (Commercial)
Features	-
Temperature Range - Operating	-40°C ~ 85°C
Efficiency	88%
Mounting Type	Through Hole
Package / Case	8-SIP Module, 7 Leads
Size / Dimension	0.87" L x 0.37" W x 0.47" H (22.0mm x 9.5mm x 12.0mm)
Supplier Device Package	-
Control Features	-
Approval Agency	CE
Base Product Number	URB2424
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Win Source Part Number	1372692-URB2424S-10WR3
Ultra Librarian 3D Model	Ultra Librarian URB2424S-10WR3 CAD Model

Alternative Products

Description

The URB2424S-10WR3 (10W) is an isolated module from Mornsun America, LLC.

Type: Power supply module designed for board mount DC-DC conversion
Operating Temperature Range: -40°C to 85°C
Maximum Output Current: 417mA
Power Rating: 10W
Input Voltage Range: 9V to 36V
Output: Single 24V
Package: 8-SIP package with 7 leads
Mounting: Through-Hole
Approval: CE
Application: ITE (Commercial)
Size: 0.87" L x 0.37" W x 0.47" H (22.0mm x 9.5mm x 12.0mm)
Efficiency: 88%
