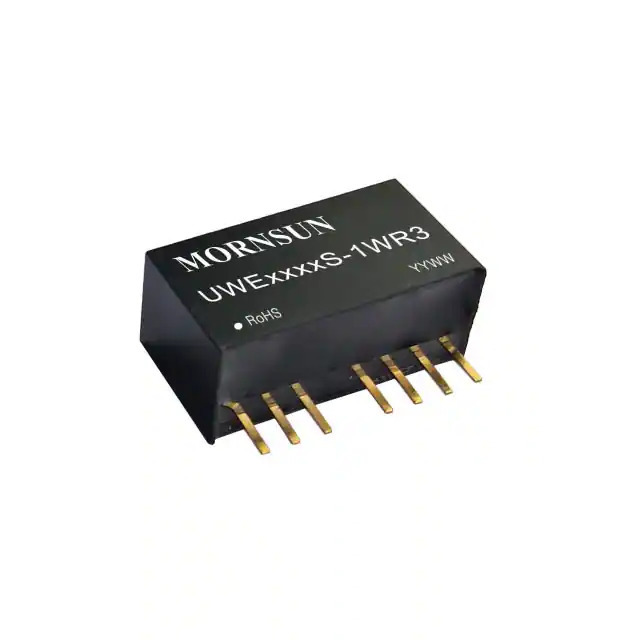

Same model may have multiple batches, images only for reference.
UWE1212S-3WR3 MORNSUN Science& Technology Ltd.
Same model may have multiple batches, images only for reference.

UWE1212S-3WR3

Part No UWE1212S-3WR3
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER,3W,12VDC
Sample
Rohs State Need to verify
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Mornsun America, LLC
Series UWE_S-3WR3 (3W)
Package Tube
Product Status Active
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 36V
Voltage - Output 1 12V
Voltage - Output 2 12V
Voltage - Output 3 -
Voltage - Output 4 -
Current - Output (Max) 125mA, 125mA
Power (Watts) 1.25 W
Voltage - Isolation 3 kV
Applications ITE (Commercial)
Features -
Temperature Range - Operating -40°C ~ 105°C (With Derating)
Efficiency 79%
Mounting Type Through Hole
Package / Case 8-SIP Module, 7 Leads
Size / Dimension 0.87" L x 0.37" W x 0.47" H (22.0mm x 9.5mm x 12.0mm)
Supplier Device Package -
Control Features -
Approval Agency CE
Base Product Number UWE1212
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 1372839-UWE1212S-3WR3
Ultra Librarian 3D Model Ultra Librarian UWE1212S-3WR3 CAD Model

Description

The Mornsun America, LLC UWE_S-3WR3 (3W) is an active isolated module DC-DC converter.

  • Voltage - Input: 4.5V ~ 36V
  • Voltage - Output 1: 12V
  • Voltage - Output 2: -12V
  • Current - Output 1: 125mA
  • Current - Output 2: 125mA
  • Power (Watts): 1.25W
  • Operating Temperature: -40°C ~ 105°C with derating
  • Application: ITE (Commercial)
  • Size / Dimension: 0.87" L x 0.37" W x 0.47" H (22.0mm x 9.5mm x 12.0mm)
  • Mounting Type: Through Hole
  • Approvals: CE
  • Efficiency: 79%
  • Voltage - Isolation: 3kV
