Same model may have multiple batches, images only for reference.

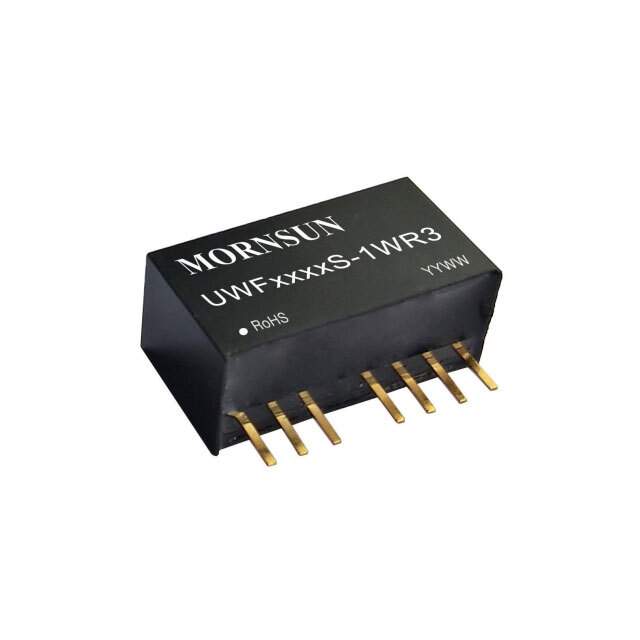

UWF1205S-1WR3 Real Image
Same model may have multiple batches, images only for reference.

UWF1205S-1WR3

Part No UWF1205S-1WR3
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER,1W,5VDC  /  Isolated Module DC DC Converter 1 Output 5V 200mA 4.5V - 36V Input
Sample
Rohs State Need to verify
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Mfr Mornsun America, LLC
Series UWF_S-1WR3 (1W)
Package Tube
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 36V
Voltage - Output 1 5V
Current - Output (Max) 200mA
Power (Watts) 1 W
Voltage - Isolation 3 kV
Applications ITE (Commercial)
Temperature Range - Operating -40°C ~ 105°C (With Derating)
Efficiency 71%
Mounting Type Through Hole
Package / Case 8-SIP Module, 7 Leads
Dimension 0.87" L x 0.37" W x 0.47" H (22.0mm x 9.5mm x 12.0mm)
Approval Agency CE
Base Product Number UWF1205
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.40.9580
Other Names 2725-UWF1205S-1WR3
Standard Package 660
Win Source Part Number 1018493-UWF1205S-1WR3
Ultra Librarian 3D Model Ultra Librarian UWF1205S-1WR3 CAD Model

Description

The UWF1205S-1WR3 is a DC DC converter type of electronic component manufactured by Mornsun America, LLC.

  • Power: 1 watt
  • Voltage Isolation: 3 kV
  • Number of Outputs: 1
  • Current Output: 200mA
  • Voltage Input: ranges from 4.5V to 36V
  • Voltage Output: 5V
  • Efficiency: 71%
  • Mounting Type: through hole
  • Package or Case: 8-SIP module, 7 leads
  • Temperature Range: -40 degrees Celsius to 105 degrees Celsius with derating
  • Mfr number: 2725-UWF1205S-1WR3.
