Same model may have multiple batches, images only for reference.

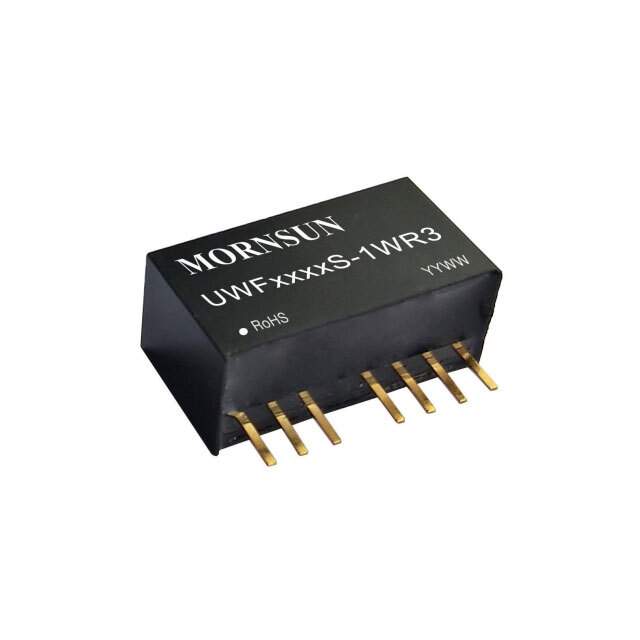

UWF1205S-3WR3 Real Image
Same model may have multiple batches, images only for reference.

UWF1205S-3WR3

Part No UWF1205S-3WR3
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER,3W,5VDC  /  Isolated Module DC DC Converter 1 Output 5V 600mA 4.5V - 36V Input
Sample
Rohs State Need to verify
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Mfr Mornsun America, LLC
Series UWF_S-3WR3 (3W)
Package Tube
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 36V
Voltage - Output 1 5V
Current - Output (Max) 600mA
Power (Watts) 3 W
Voltage - Isolation 3 kV
Applications ITE (Commercial)
Temperature Range - Operating -40°C ~ 105°C (With Derating)
Efficiency 77%
Mounting Type Through Hole
Package / Case 8-SIP Module, 7 Leads
Dimension 0.87" L x 0.37" W x 0.47" H (22.0mm x 9.5mm x 12.0mm)
Approval Agency CE
Base Product Number UWF1205
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.40.9580
Other Names 2725-UWF1205S-3WR3
Standard Package 220
Win Source Part Number 1232614-UWF1205S-3WR3
Ultra Librarian 3D Model Ultra Librarian UWF1205S-3WR3 CAD Model

Description

The UWF1205S-3WR3 is an isolated module DC-DC converter manufactured by Mornsun America, LLC.

  • Power Output: 3W
  • Maximum Output Current: 600mA
  • Input Voltage Range: 4.5V to 36V
  • Output Voltage: 5V
  • Efficiency: 77%
  • Packaging: Tube
  • Standard Package: 220
  • Mounting: Through-hole
  • Package Size: 8-SIP module, 7 leads
  • Operating Temperature Range: -40°C to 105°C
  • HTSUS Code: 8504.40.9580
