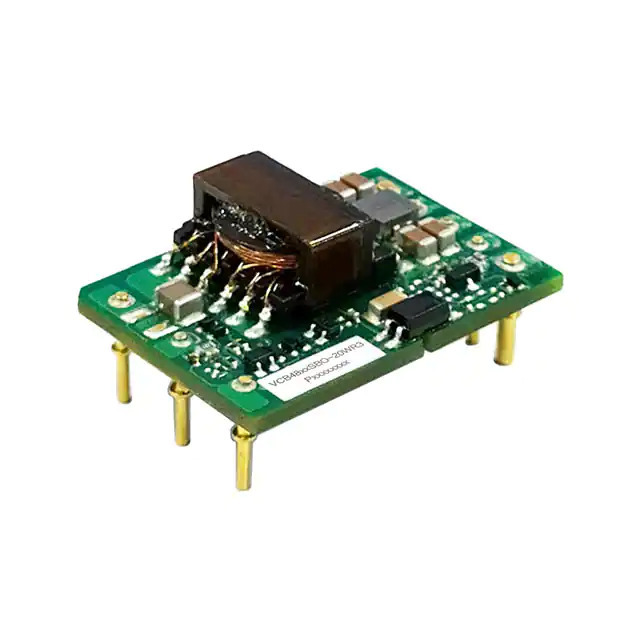

Same model may have multiple batches, images only for reference.

VCB4805SBO-20WR3

Get a Quote

Part No	VCB4805SBO-20WR3
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER, 20W, 5V
Sample
Rohs State	Need to verify
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount - DC DC Converters
Mfr	Mornsun America, LLC
Series	VCB48_SBO-20WR3 (20W)
Package	Tray
Product Status	Active
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	36V
Voltage - Input (Max)	75V
Voltage - Output 1	5V
Voltage - Output 2	-
Voltage - Output 3	-
Voltage - Output 4	-
Current - Output (Max)	4A
Power (Watts)	20 W
Voltage - Isolation	1.5 kV
Applications	ITE (Commercial)
Features	Adjustable Output, Remote Sense
Temperature Range - Operating	-40°C ~ 85°C (With Derating)
Efficiency	88%
Mounting Type	Through Hole
Package / Case	Sixteenth Brick
Size / Dimension	1.30" L x 0.90" W x 0.50" H (33.0mm x 22.9mm x 12.7mm)
Supplier Device Package	Sixteenth Brick
Control Features	-
Approval Agency	CE
Standard Number	62368-1
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Win Source Part Number	1372698-VCB4805SBO-20WR3
Ultra Librarian 3D Model	Ultra Librarian VCB4805SBO-20WR3 CAD Model

Alternative Products

Description

The VCB4805SBO-20WR3 is a 20W isolated module DC-DC converter from Mornsun America, LLC.

Series: VCB48_SBO-20WR3
Package: Sixteenth Brick
Features: Adjustable output and remote sense
Operating Temperature: -40°C to 85°C (with derating)
Input Voltage Range: 36V to 75V
Output: Single 5V
Maximum Output Current: 4A
Voltage Isolation: 1.5 kV
Efficiency: 88%
Application: ITE (Commercial)
Approval: CE
Standard Number: 62368-1
