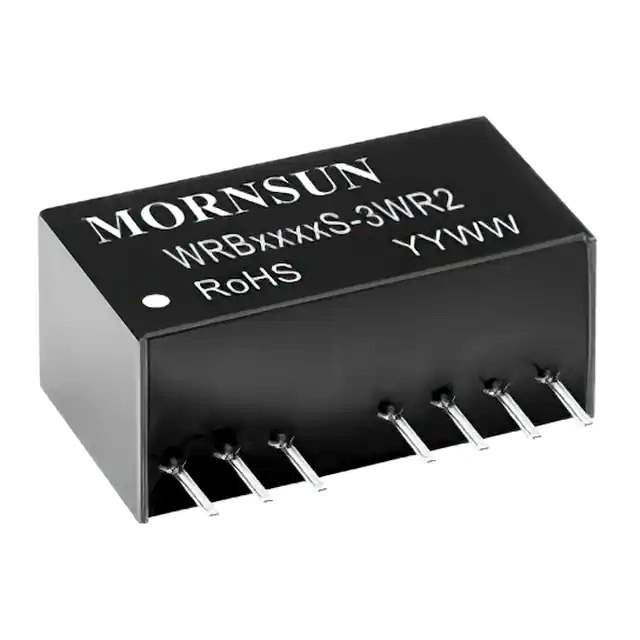

WRB0509S-3WR2 Real Image
Same model may have multiple batches, images only for reference.

WRB0509S-3WR2

Part No WRB0509S-3WR2
Catalog Power Supplies Board Mount DCDC Converters
Description ISOLATED MODULE DC DC CONVERTER
Sample
Rohs State rohs
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr MORNSUN Science& Technology Ltd.
Series WRB_S-3WR2 (3W)
Package Tube
Product Status Active
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 9V
Voltage - Output 1 9V
Current - Output (Max) 278mA
Power (Watts) 2.5 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features Remote On/Off
Temperature Range - Operating -40°C ~ 85°C (With Derating)
Efficiency 74%
Mounting Type Through Hole
Package / Case 8-SIP Module, 7 Leads
Size / Dimension 0.87" L x 0.37" W x 0.47" H (22.0mm x 9.5mm x 12.0mm)
Approval Agency CE
Standard Number 60950-1
Standard Package 22 pcs
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 743176-WRB0509S-3WR2
Ultra Librarian 3D Model Ultra Librarian WRB0509S-3WR2 CAD Model

Description

The WRB_S-3WR2 (3W) is an isolated module power supply in a compact package. It is designed for power supplies in board mount applications.

  • Category: DC-DC Converters
  • Features: Remote On/Off Function
  • Size: 0.87" L x 0.37" W x 0.47" H
  • Output Voltage: 9V
  • Maximum Output Current: 278mA
  • Input Voltage Range: 4.5V to 9V
  • Applications: ITE (Commercial)
  • Standard Package: 22 pcs
  • Efficiency: 74%
