Same model may have multiple batches, images only for reference.

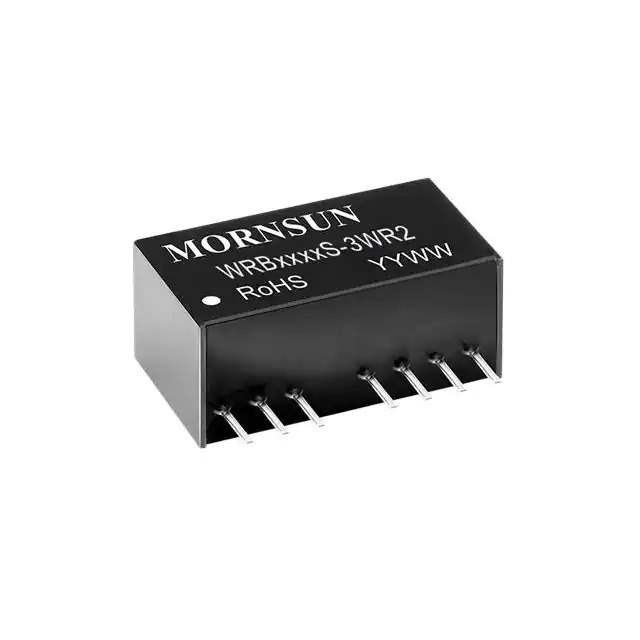

WRB0515S-3WR2 Real Image
Same model may have multiple batches, images only for reference.

WRB0515S-3WR2

Part No WRB0515S-3WR2
Catalog Power Supplies Board Mount DCDC Converters
Description ISOLATED MODULE DC DC CONVERTER
Sample
Rohs State rohs
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr MORNSUN Science& Technology Ltd.
Series WRB_S-3WR2 (3W)
Package Tube
Product Status Active
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 9V
Voltage - Output 1 15V
Current - Output (Max) 167mA
Power (Watts) 2.5 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features Remote On/Off
Temperature Range - Operating -40°C ~ 85°C
Efficiency 74%
Mounting Type Through Hole
Package / Case 8-SIP Module, 7 Leads
Size / Dimension 0.87" L x 0.37" W x 0.47" H (22.0mm x 9.5mm x 12.0mm)
Approval Agency CE
Standard Number 60950-1
Standard Package 22 pcs
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 697834-WRB0515S-3WR2
Ultra Librarian 3D Model Ultra Librarian WRB0515S-3WR2 CAD Model

Description

The WRB0515S-3WR2 is a 3W isolated module DC-DC converter suitable for power supply applications.

  • Function: Remote On/Off
  • Size: 0.87" L x 0.37" W x 0.47" H
  • Voltage Isolation: 1.5 kV
  • Output Voltage: 15V
  • Maximum Output Current: 167mA
  • Input Voltage: 4.5V to 9V
  • Efficiency: 74%
  • Mounting: Through-Hole
  • Package: 8-SIP Module, 7 Leads
  • Status: Active
  • Manufacturer: MORNSUN Science & Technology Ltd.
  • Approval: CE
