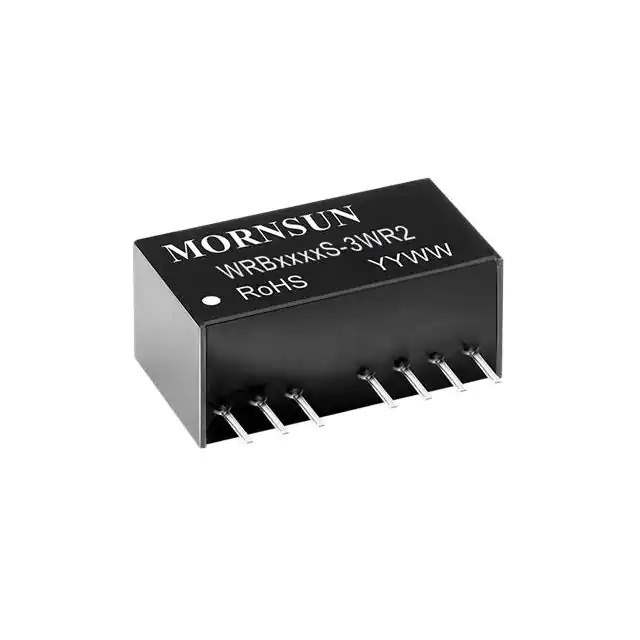

WRB0524S-3WR2 Real Image
Same model may have multiple batches, images only for reference.

WRB0524S-3WR2

Part No WRB0524S-3WR2
Catalog Power Supplies Board Mount DCDC Converters
Description ISOLATED MODULE DC DC CONVERTER
Sample
Rohs State rohs
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr MORNSUN Science& Technology Ltd.
Series WRB_S-3WR2 (3W)
Package Tube
Product Status Active
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 9V
Voltage - Output 1 24V
Current - Output (Max) 104mA
Power (Watts) 2.5 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features Remote On/Off
Temperature Range - Operating -40°C ~ 85°C (With Derating)
Efficiency 76%
Mounting Type Through Hole
Package / Case 8-SIP Module, 7 Leads
Size / Dimension 0.87" L x 0.37" W x 0.47" H (22.0mm x 9.5mm x 12.0mm)
Approval Agency CE
Standard Number 60950-1
Standard Package 22 pcs
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 1104803-WRB0524S-3WR2
Ultra Librarian 3D Model Ultra Librarian WRB0524S-3WR2 CAD Model

Description

The WRB_S-3WR2 (3W) is a power supply module designed for board mount DC-DC conversion.

  • Size: 0.87" L x 0.37" W x 0.47" H (22.0mm x 9.5mm x 12.0mm)
  • Standard Package: 22 pcs
  • Input Voltage Range: 4.5V to 9V
  • Maximum Output Power: 2.5W
  • Output: One output
  • Voltage Output: 24V
  • Efficiency: 76%
  • Voltage Isolation: 1.5 kV
  • Applications: ITE (Commercial)
  • Mounting Type: Through-hole
  • Temperature Range: -40°C to 85°C (with derating)
  • Approval: CE
  • Standard Number: 60950-1
