Same model may have multiple batches, images only for reference.

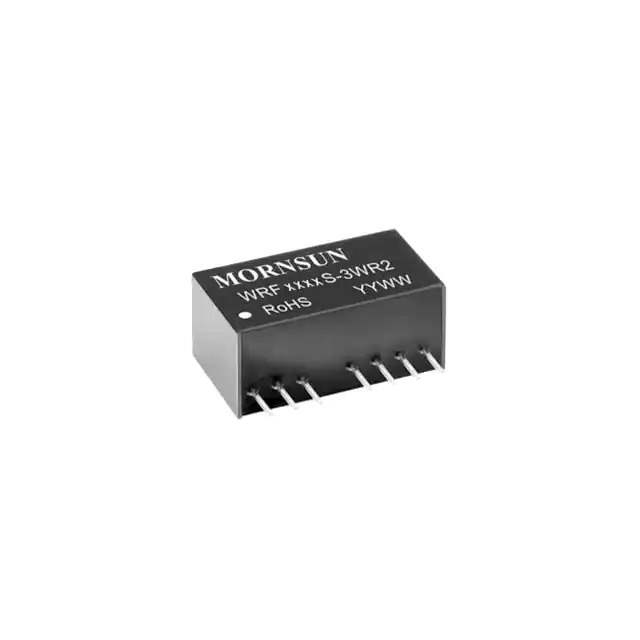

WRF1212S-3WR2 Real Image
Same model may have multiple batches, images only for reference.

WRF1212S-3WR2

Part No WRF1212S-3WR2
Catalog Power Supplies Board Mount DCDC Converters
Description ISOLATED MODULE DC DC CONVERTER
Sample
Rohs State rohs
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr MORNSUN Science& Technology Ltd.
Series WRF_S - 3WR2 (3W)
Package Tube
Product Status Active
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 9V
Voltage - Input (Max) 18V
Voltage - Output 1 12V
Current - Output (Max) 250mA
Power (Watts) 3 W
Voltage - Isolation 3 kV
Applications ITE (Commercial)
Features Remote On/Off
Temperature Range - Operating -40°C ~ 85°C (With Derating)
Efficiency 82%
Mounting Type Through Hole
Package / Case 8-SIP Module, 7 Leads
Size / Dimension 0.87" L x 0.37" W x 0.47" H (22.0mm x 9.5mm x 12.0mm)
Approval Agency CE
Standard Number 60950-1
Standard Package 22 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 1104829-WRF1212S-3WR2
Ultra Librarian 3D Model Ultra Librarian WRF1212S-3WR2 CAD Model

Description

The WRF_S - 3WR2 (3W) is an isolated module DC-DC converter designed for power supply applications in ITE (Commercial) devices.

  • Size: 0.87" L x 0.37" W x 0.47" H (22.0mm x 9.5mm x 12.0mm)
  • Package Type: Tube
  • Voltage Isolation: 3 kV
  • Output Voltage: 12V
  • Maximum Output Current: 250mA
  • Input Voltage Range: 9V to 18V
  • Efficiency: 82%
  • Temperature Range: -40°C to 85°C
  • Mounting Type: Through Hole
  • Package: 8-SIP Module, 7 Leads package
  • Status: Active
  • Manufacturer: MORNSUN Science & Technology Ltd.
  • Approval Agency: CE
  • Standard Number: 60950-1
