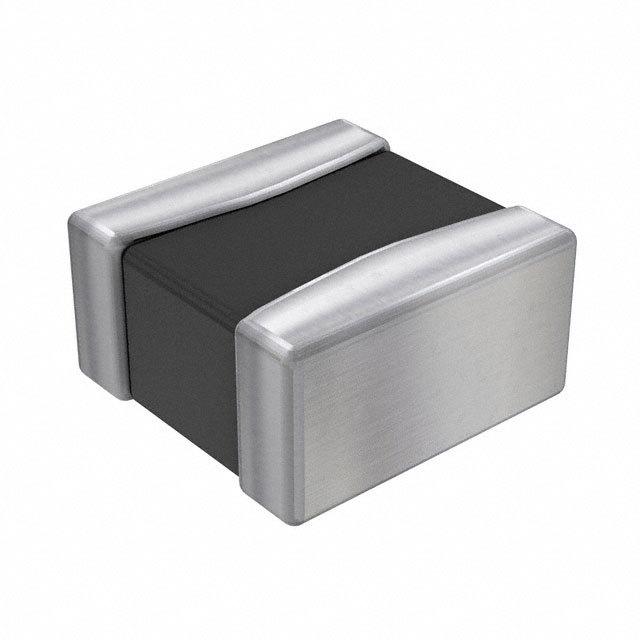

1285AS-H-2R2M=P2

Part No 1285AS-H-2R2M=P2
Manufacturer Murata Electronics North America
Catalog Fixed Inductors
Description FIXED IND 2.2UH 1.5A 204 MOHM
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Murata Electronics North America
Packaging Reel - TR
Status Active
Type Wirewound
Material - Core Powdered Iron
Inductance 2.2μH
Tolerance ±20%
Current Rating 1.5A
DC Resistance (DCR) 204 mOhm Max
Temperature Range - Operating -40°C to 85°C
Frequency - Test 1MHz
Mounting SMD (SMT)
Case / Package 0806 (2016 Metric)
Height - Seated (Max) 0.039" (1.00mm)
Win Source Part Number 115429-1285AS-H-2R2M=P2
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 1285AS-H-2R2M=P2 CAD Model

Description

Product Overview

The 1285AS-H-2R2M=P2 is a cutting-edge electronic component designed to meet the highest standards of performance and reliability. Ideal for a vast array of modern applications, it offers unparalleled functionality and ease of use.

Features and Benefits

  • Precision engineering for reliable operation
  • Compact footprint optimizing available space
  • Comprehensive compatibility across systems
  • Simple integration into existing projects

Applications

  • Internet of Things (IoT) applications
  • Advanced consumer electronics
  • Healthcare technology
  • Automotive innovation
  • Security systems

For those seeking a component that balances high performance with compact design, the 1285AS-H-2R2M=P2 is an excellent choice to ensure your projects run smoothly, efficiently, and exceptionally well.
