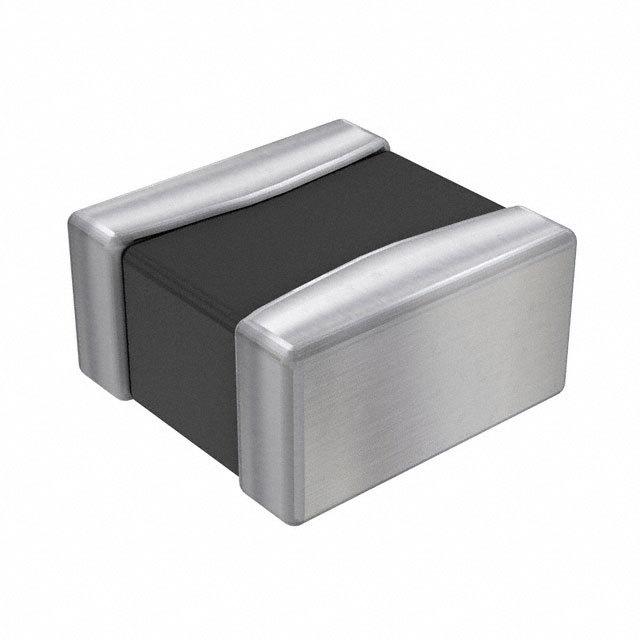

1285AS-H-R68M=P2 Murata Electronics North America
Same model may have multiple batches, images only for reference.

1285AS-H-R68M=P2

Part No 1285AS-H-R68M=P2
Manufacturer Murata Electronics North America
Catalog Fixed Inductors
Description FIXED IND 680NH 2.5A 72 MOHM SMD
Datasheet
1285AS-H-R68M=P2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Murata Electronics North America
Series DFE201610C
Packaging Reel package
Type Wirewound
Material - Core Powdered Iron
Inductance 680nH
Tolerance ±20%
Current Rating 2.5A
Current - Saturation 2.6A
Shielding Shielded
DC Resistance (DCR) 72 mOhm Max
Operating Temperature Range -40°C ~ 85°C
Test Frequency 1MHz
Mounting SMD
Package 0805
Dimension 0.079" L x 0.063" W (2.00mm x 1.60mm)
Height - Seated (Maximum) 0.039" (1.00mm)
Win Source Part Number 760343-1285AS-H-R68M=P2
Popularity Medium
Supply and Demand Status Limited
Family Name DFE201610C
ECCN EAR99
Estimated EOL Date 2028
Ultra Librarian 3D Model Ultra Librarian 1285AS-H-R68M=P2 CAD Model

Description

The Murata Electronics North America DFE201610C is a wirewound inductor that is shielded and SMD mounted.

  • Inductance: 680nH
  • Current Rating: 2.5A
  • Core Material: Powdered Iron
  • Tolerance: ±20%
  • Maximum DC Resistance: 72 mOhm
  • Operating Temperature: -40°C to 85°C
  • Height: 0.039" (1.00mm)
  • Packaging: Reel
  • Dimensions: 0.079" L x 0.063" W (2.00mm x 1.60mm)
