Same model may have multiple batches, images only for reference.

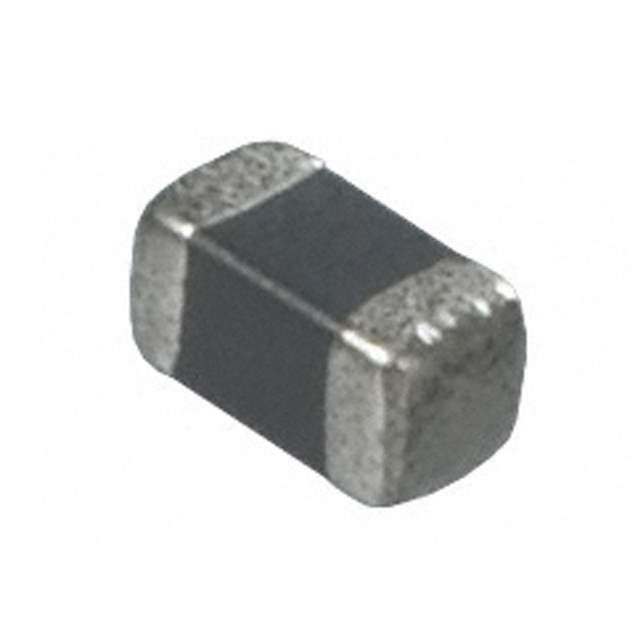

BLM02AX700SN1D Real Image
Same model may have multiple batches, images only for reference.

BLM02AX700SN1D

Part No BLM02AX700SN1D
Manufacturer Murata Electronics North America
Catalog Ferrite Beads and Chips
Description FERRITE BEAD 70 OHM 01005 1LN
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Murata Electronics
Packaging Reel
Number of Lines 1
Impedance at Frequency 70 Ohms at 100MHz
Current Rating (Maximum) 300mA
DC Resistance (DCR) (Maximum) 360mOhm
Temperature Range - Operating -55°C ~ 125°C
Manufacturer Package 1005
Mounting Style SMD
Height (Maximum) 0.009" (0.22mm)
Dimension 0.016" L x 0.008" W (0.40mm x 0.20mm)
Manufacturer Pack Quantity 20,000
MSL Level 1 (Unlimited)
Popularity High
Supply and Demand Status Sufficient
Win Source Part Number 801399-BLM02AX700SN1D
Ultra Librarian 3D Model Ultra Librarian BLM02AX700SN1D CAD Model

Description

The 801399-BLM02AX700SN1D is a surface mount device (SMD) from Murata Electronics.

  • Mounting Style: Reel
  • Component Type: Filter
  • Lines: Single
  • Operating Temperature Range: -55°C to 125°C
  • Dimensions: 0.016" L x 0.008" W (0.40mm x 0.20mm)
  • Manufacturer Package: 1005
  • Maximum Height: 0.009" (0.22mm)
  • Current Rating: 300mA
  • DC Resistance (DCR): 360mOhm
  • Manufacturer Pack Quantity: 20,000
  • MSL Level: 1 (unlimited)
  • Impedance @ Frequency: 70 Ohms @ 100MHz
