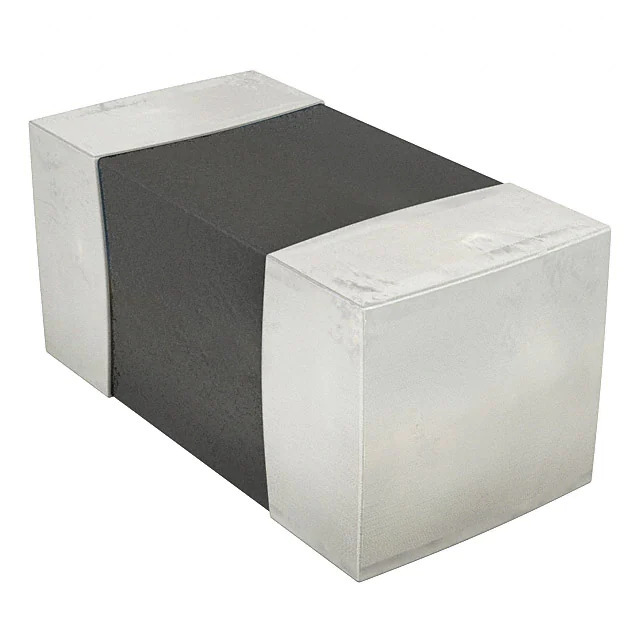

Same model may have multiple batches, images only for reference.
BLM15AX100SZ1D Murata Electronics North America
Same model may have multiple batches, images only for reference.

BLM15AX100SZ1D

Part No BLM15AX100SZ1D
Manufacturer Murata Electronics North America
Catalog Ferrite Beads and Chips
Description FERRITE BEAD 10 OHM 0402 1LN
Datasheet
BLM15AX100SZ1D Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters - Ferrite Beads and Chips
Mfr Murata Electronics
Series BLM
Package Tape & Reel
Product Status Active
Filter Type Power, Signal Line
Number of Lines 1
Impedance @ Frequency 10 Ohms @ 100 MHz
Current Rating (Max) 1.74A
DC Resistance (DCR) (Max) 15mOhm
Ratings AEC-Q200
Temperature Range - Operating -55°C ~ 125°C
Package / Case 0402 (1005 Metric)
Mounting Type Surface Mount
Height (Max) 0.022" (0.55mm)
Size / Dimension 0.039" L x 0.020" W (1.00mm x 0.50mm)
Features Automotive
Base Product Number BLM15AX
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1369046-BLM15AX100SZ1D
Ultra Librarian 3D Model Ultra Librarian BLM15AX100SZ1D CAD Model

Description

The BLM15AX100SZ1D is a ferrite bead and chip filter from Murata Electronics.

  • Mounting Type: Surface Mount
  • Package: 0402 (1005 Metric)
  • Series: BLM
  • Size: 0.039" L x 0.020" W (1.00mm x 0.50mm)
  • Height: 0.022" (0.55mm)
  • REACH: Unaffected
  • ECCN: EAR99
  • Application: Automotive
  • Impedance @ 100 MHz: 10 Ohms
  • Current Rating: 1.74A
  • DC Resistance: 15mOhm
