Same model may have multiple batches, images only for reference.

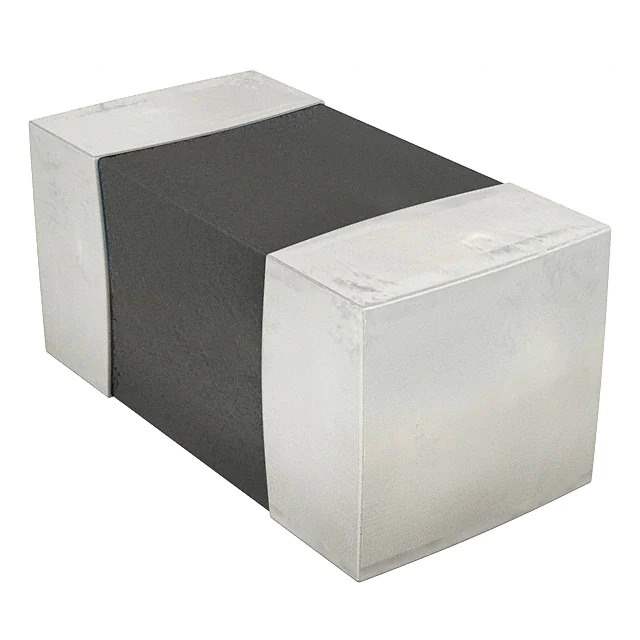

BLM15BA050SN1D Real Image
Same model may have multiple batches, images only for reference.

BLM15BA050SN1D

Part No BLM15BA050SN1D
Manufacturer Murata Electronics North America
Catalog Ferrite Beads and Chips
Description FERRITE BEAD 5 OHM 0402 1LN
Datasheet
BLM15BA050SN1D Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters - Ferrite Beads and Chips
Mfr Murata Electronics North America
Series EMIFIL®, BLM15
Package Tape & Reel
Product Status Active
Filter Type Signal Line
Number of Lines 1
Impedance @ Frequency 5 Ohms @ 100 MHz
Current Rating (Max) 300mA
DC Resistance (DCR) (Max) 100mOhm
Temperature Range - Operating -55°C ~ 125°C
Package / Case 0402 (1005 Metric)
Mounting Type Surface Mount
Height (Max) 0.022" (0.55mm)
Size / Dimension 0.039" L x 0.022" W (1.00mm x 0.55mm)
Base Product Number BLM15BA
Standard Package 10,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 571151-BLM15BA050SN1D
Ultra Librarian 3D Model Ultra Librarian BLM15BA050SN1D CAD Model

Description

The BLM15BA050SN1D is a ferrite bead and chip filter from the EMIFIL®, BLM15 series manufactured by Murata Electronics North America.

  • Function: Suppress electromagnetic interference (EMI) in signal lines
  • Size: 0.039" L x 0.022" W (1.00mm x 0.55mm)
  • Mounting Type: Surface Mountable
  • Package/Case: 0402 (1005 Metric)
  • Impedance: 5 Ohms @ 100 MHz
  • Maximum Current Rating: 300mA
  • DC Resistance (DCR): 100mOhm
  • Standard Package: 10,000 pieces
  • Operating Temperature Range: -55°C to 125°C
  • Reference: Product datasheet provided by the manufacturer
