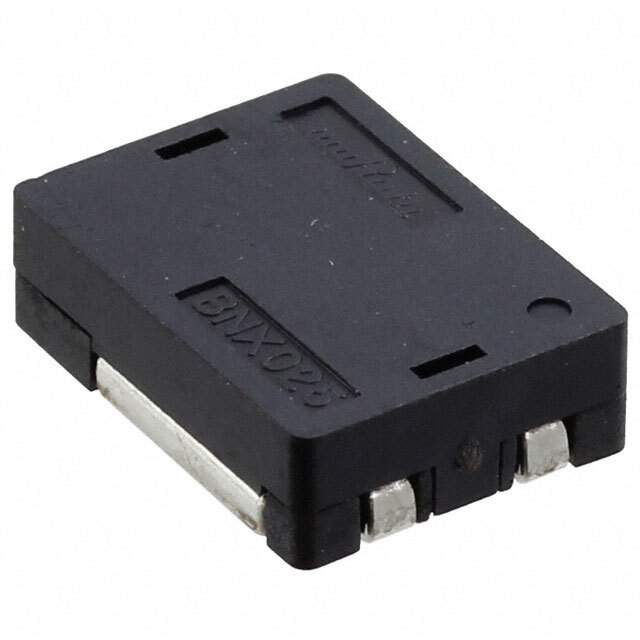

BNX023-01L

Part No BNX023-01L
Manufacturer Murata Electronics North America
Catalog EMI/RFI Filters (LC, RC Networks)
Description FILTER LC 1UF SMD
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer Murata Electronics North America
Packaging Reel - TR
Status Active
Type Low Pass
Filter Order 5th
Technology LC
Number of Channels 2
Attenuation Value 35dB @ 1MHz to 1GHz
Resistance - Channel (Ohms) 0.00043
Current 15A
Values C = 1μF
ESD Protection No
Temperature Range - Operating -40°C to 125°C
Applications Data Lines for Mobile Devices
Voltage Rating 100V
Mounting SMD (SMT)
Dimension 0.476" L x 0.358" W (12.10mm x 9.10mm)
Height 0.130" (3.30mm)
Win Source Part Number 114046-BNX023-01L
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Family Name BNX023
Introduction Date March 01, 2006
ECCN EAR99
Country of Origin Japan
Halogen Free Unknown
Estimated EOL Date 2023
Ultra Librarian 3D Model Ultra Librarian BNX023-01L CAD Model

Description

Overview of BNX023-01L

Designed with precision, the BNX023-01L component is a perfect fit for applications that demand high performance and reliability. This product is known for its superior construction and extensive adaptability.

Features & Benefits

  • Advanced Performance: Offers top-notch output suitable for critical applications.
  • Durable Design: Ensures longevity and stability in challenging conditions.
  • Flexible Application: Compatible with a wide range of devices and systems.

Applications

  • Industrial Equipment
  • Telecommunications
  • Aerospace Technologies
  • Energy Management Systems

For projects that require high reliability and versatile performance, the BNX023-01L presents an excellent option.
