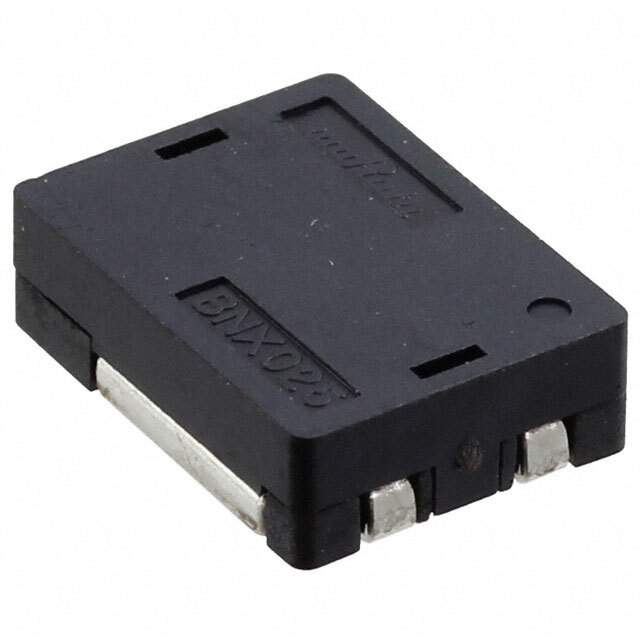

BNX027H01L

Part No BNX027H01L
Manufacturer Murata Electronics North America
Catalog EMI/RFI Filters (LC, RC Networks)
Description FILTER LC 22UF SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Murata Electronics
Packaging Reel
Type Low Pass
Filter Order 5th
Technology LC
Number of Channels 2
Attenuation Value 35dB at 40kHz ~ 1GHz
Resistance - Channel (Ohms) 0.00043
Current 20A
Values C = 22μF
ESD Protection No
Temperature Range - Operating -55°C ~ 125°C
Applications Automotive
Voltage - Rated 16V
Mounting Style SMD
Manufacturer Package 4-SMD, No Lead
Dimension 0.476" L x 0.358" W (12.10mm x 9.10mm)
Height 0.146" (3.70mm)
Manufacturer Pack Quantity 400
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 809224-BNX027H01L
Ultra Librarian 3D Model Ultra Librarian BNX027H01L CAD Model

Description

The Murata Electronics BNX027H01L is a low pass filter from Murata Electronics.

  • Voltage Rating: 16V
  • Current: 20A
  • Filter Order: 5th
  • Attenuation: 35dB @ 40kHz ~ 1GHz
  • Channels: 2
  • Height: 0.146” (3.70mm)
  • Dimension: 0.476” L x 0.358” W (12.10mm x 9.10mm)
  • Mounting Style: SMD
  • Resistance: 0.00043 ohms
  • Capacitance: 22μF
  • Supply and Demand Status: Limited
  • Manufacturer Pack Quantity: 400
