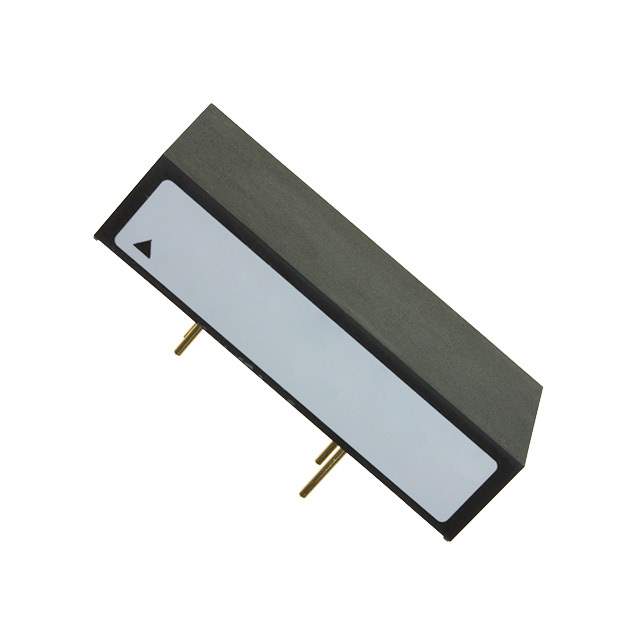

The BWR-15/100-D48 is a DC-DC converter manufactured by Murata Power Solutions. It is designed to provide a regulated -15V output at a current of 100mA from a 48VDC input. This compact module is ideal for a variety of applications requiring isolated power.

Applications

• Industrial automation systems.
• Telecommunications equipment.
• Data acquisition systems.
• Medical devices.
• Distributed power architectures.

Features

• Wide input voltage range (36-75VDC).
• Isolated output.
• Low output noise.
• High efficiency.
• Continuous short circuit protection.

Benefits

• Stable and reliable power for sensitive circuits.
• Elimination of ground loops and improved safety.
• Reduced electromagnetic interference (EMI).
• Energy savings and reduced heat dissipation.
• Protection against damage from overloads and short circuits.

Technical Specifications

The BWR-15/100-D48 has an input voltage range of 36 to 75 VDC, providing a stable negative 15V output at 100mA. It offers 1500 VDC of isolation between input and output. The converter has a typical efficiency of around 80%. It includes continuous short-circuit protection, over-voltage protection, and over-temperature protection, ensuring robust and reliable operation. The operating temperature range is typically from -40°C to +85°C. It is housed in a compact, fully encapsulated package for enhanced durability and reliability. The module is designed to meet industry safety standards.

The BWR-15/100-D48 is often chosen for its combination of small size, robust protection features, and reliable performance in demanding applications.
