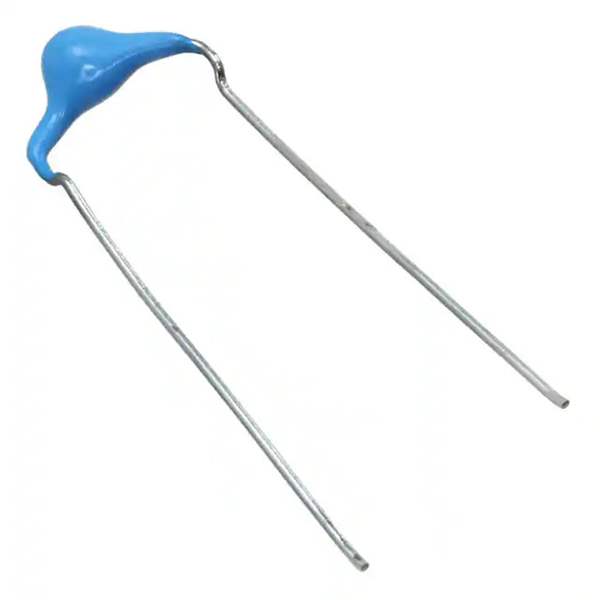

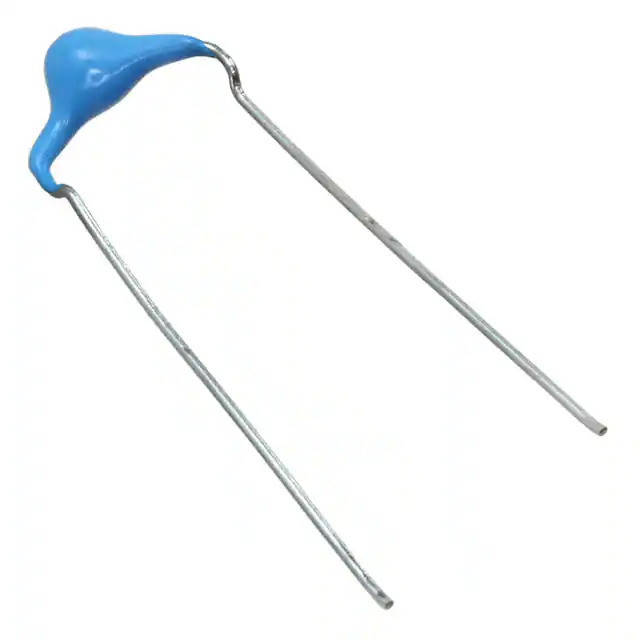

Same model may have multiple batches, images only for reference.

DE1E3RA152MN4AN01F

Name: DE1E3RA152MN4AN01F
Brand: Murata Electronics North America
SKU: 1360478
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	DE1E3RA152MN4AN01F
Manufacturer	Murata Electronics North America
Catalog	Ceramic Capacitors
Description	CAP CER 1500PF 250V RADIAL / 1500 pF ±20% 250VAC Ceramic Capacitor E Radial, Disc
Datasheet	DE1E3RA152MN4AN01F Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Ceramic Capacitors
Mfr	Murata Electronics
Series	DE1
Product Status	Active
Capacitance	1500 pF
Tolerance	±20%
Voltage - Rated	250VAC
Temperature Coefficient	E
Temperature Range - Operating	-40°C ~ 125°C
Features	-
Ratings	X1, Y1
Applications	Safety
Failure Rate	-
Mounting Type	Through Hole
Package / Case	Radial, Disc
Size / Dimension	0.315" Dia (8.00mm)
Height - Seated (Max)	0.433" (11.00mm)
Thickness (Max)	-
Lead Spacing	0.394" (10.00mm)
Lead Style	Straight
Base Product Number	DE1E3RA
MSL Level	Not Applicable
ECCN	EAR99
HTSUS	8532.24.0060
Win Source Part Number	1360478-DE1E3RA152MN4AN01F
Ultra Librarian 3D Model	Ultra Librarian DE1E3RA152MN4AN01F CAD Model

Alternative Products

Description

The DE1E3RA152MN4AN01F is a ceramic capacitor from Murata Electronics.

Series: DE1
Mounting Type: Through Hole
Package / Case: Radial, Disc
Capacitance: 1500 pF
Tolerance: ±20%
Voltage Rating: 250VAC
Applications: Safety
Lead Spacing: 0.394" (10.00mm)
Size / Dimension: 0.315" Dia (8.00mm)
Height - Seated (Max): 0.433" (11.00mm)
REACH Status: Unaffected
ECCN: EAR99
Temperature Coefficient: E
Operating Temperature: -40°C ~ 125°C
