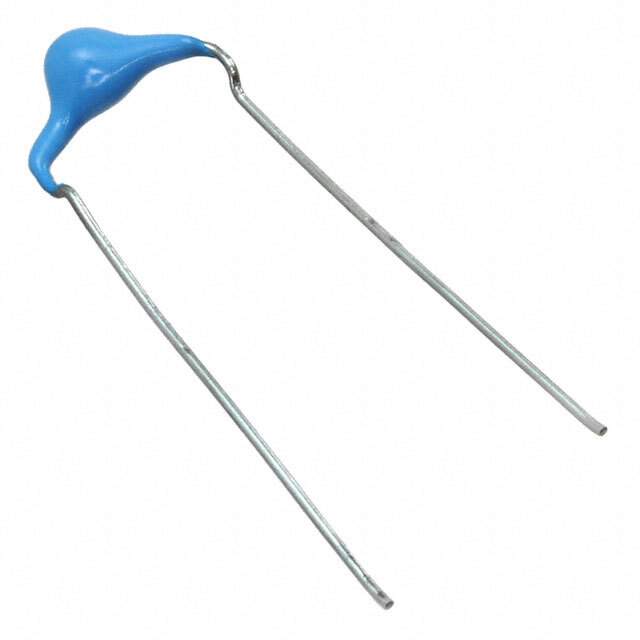

Same model may have multiple batches, images only for reference.

DE1E3RA222MN4AP01F

Name: DE1E3RA222MN4AP01F
Brand: Murata Electronics North America
SKU: 1348481
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	DE1E3RA222MN4AP01F
Manufacturer	Murata Electronics North America
Catalog	Ceramic Capacitors
Description	CAP CER 2200PF 300V RADIAL / 2200 pF ±20% 300VAC Ceramic Capacitor E Radial, Disc
Datasheet	DE1E3RA222MN4AP01F Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Ceramic Capacitors
Mfr	Murata Electronics
Series	DE1
Package	Cut Tape (CT) Tape & Box (TB)
Capacitance	2200 pF
Tolerance	±20%
Voltage - Rated	300VAC
Temperature Coefficient	E
Temperature Range - Operating	-40°C ~ 125°C
Ratings	X1, Y1
Applications	Safety
Mounting Type	Through Hole
Package / Case	Radial, Disc
Size / Dimension	0.354" Dia (9.00mm)
Height - Seated (Max)	0.472" (12.00mm)
Lead Spacing	0.394" (10.00mm)
Lead Style	Straight
Base Product Number	DE1E3RA
Standard Package	600
MSL Level	Not Applicable
ECCN	EAR99
HTSUS	8532.24.0060
Win Source Part Number	1348481-DE1E3RA222MN4AP01F
Ultra Librarian 3D Model	Ultra Librarian DE1E3RA222MN4AP01F CAD Model

Alternative Products

Description

The Murata Electronics DE1 series capacitor is an ideal choice for safety applications.

Capacitance: 2200 pF
Tolerance: ±20%
Voltage Rating: 300VAC
Temperature Coefficient: E
Package/Case: Radial, disc
Lead Spacing: 0.394" (10.00mm)
Height (Seated): 0.472" (12.00mm)
Diameter: 0.354" (9.00mm)
Rating: X1, Y1
Temperature Range: -40°C ~ 125°C
Mounting Type: Through-hole
