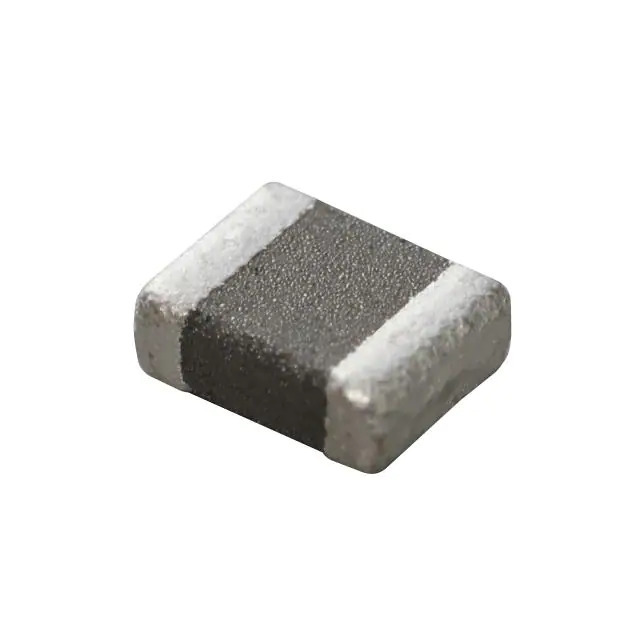

Same model may have multiple batches, images only for reference.
DFE252010F-R22M=P2 Murata Electronics North America
Same model may have multiple batches, images only for reference.

DFE252010F-R22M=P2

Part No DFE252010F-R22M=P2
Manufacturer Murata Electronics North America
Catalog Fixed Inductors
Description FIXED IND 220NH 5A 16 MOHM SMD
Datasheet
DFE252010F-R22M=P2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Murata Electronics
Series DFE252010F
Package Tape & Reel
Product Status Active
Type Drum Core, Wirewound
Material - Core Metal
Inductance 220 nH
Tolerance ±20%
Current Rating (Amps) 5 A
Current - Saturation (Isat) 7.2A
Shielding Shielded
DC Resistance (DCR) 16mOhm Max
Q @ Freq -
Frequency - Self Resonant -
Ratings -
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 1 MHz
Features -
Mounting Type Surface Mount
Package / Case 1008 (2520 Metric)
Supplier Device Package 1008
Size / Dimension 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max) 0.039" (1.00mm)
Base Product Number DFE252010F
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1370113-DFE252010F-R22M=P2
Ultra Librarian 3D Model Ultra Librarian DFE252010F-R22M=P2 CAD Model

Description

The Murata Electronics DFE252010F-R22M=P2 is a drum core, wirewound inductor from the DFE252010F series.

  • Manufacturer: Murata Electronics
  • Series: DFE252010F
  • Type: Drum core, wirewound
  • Mounting: Surface mount
  • Package: 1008 (2520 Metric)
  • Temperature Range: -40°C to 125°C
  • Inductance: 220 nH
  • Tolerance: ±20%
  • Current Rating: 5 A
  • Saturation Current: 7.2A
  • DCR: 16mOhm max
  • Shielding: Shielded
  • Applications: Power supplies, voltage regulators, and DC-DC converters
