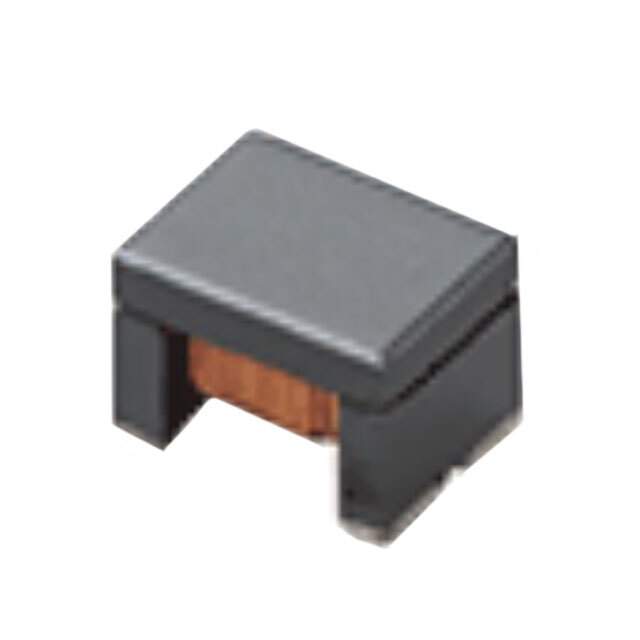

DLW32SH220XK2L Real Image
Same model may have multiple batches, images only for reference.

DLW32SH220XK2L

Part No DLW32SH220XK2L
Manufacturer Murata Electronics North America
Catalog Common Mode Chokes
Description CMC 22UH 250MA 2LN SMD AEC-Q200  /  22 µH @ 100 kHz 2 Line Common Mode Choke Surface Mount 250mA DCR 500mOhm
Datasheet
DLW32SH220XK2L Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr Murata Electronics
Series DLW32
Package Tape & Reel
Product Status Not For New Designs
Number of Lines 2
Inductance @ Frequency 22 µH @ 100 kHz
Current Rating (Max) 250mA
DC Resistance (DCR) (Max) 500mOhm
Voltage Rating - DC 80V
Temperature Range - Operating -40°C ~ 125°C
Ratings AEC-Q200
Mounting SMD (SMT)
Dimension 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height (Max) 0.098" (2.50mm)
Package / Case Horizontal, 4 PC Pad
Base Product Number DLW32SH
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8548.00.0000
Other Names 490-18063-6,490-18063-1,490-18063-2
Standard Package 1,500
Win Source Part Number 969828-DLW32SH220XK2L
Ultra Librarian 3D Model Ultra Librarian DLW32SH220XK2L CAD Model

Description

The DLW32SH220XK2L is a common mode choke filter from Murata Electronics that is designed to be used in various electronic circuits. This choke is manufactured by Murata Electronics.

  • Packaging: Tape and Reel
  • Voltage Rating (DC): 80V
  • Voltage Rating (AC): No Rating
  • Maximum Current Rating: 250mA
  • PC Pad Configuration: 4 Pads Horizontally Placed
  • Filter Type: Not Specified
  • Choke Filter Lines: 2
  • Inductance @ Frequency: 22 µH @ 100 kHz
  • Maximum DC Resistance: 500mOhm
  • AEC-Q200 Rated: Yes
  • Temperature Range: -40°C to 125°C
  • Dimensions: 0.126” L x 0.098” W (3.20mm x 2.50mm)
  • Design Status: Not For New Designs
  • Agency Approval: No Specific Agency
