Same model may have multiple batches, images only for reference.

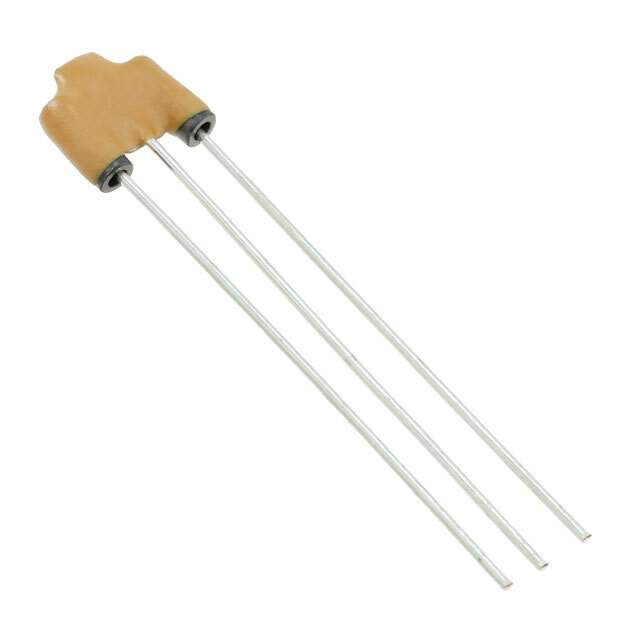

DSS6NC52A102Q91A Real Image
Same model may have multiple batches, images only for reference.

DSS6NC52A102Q91A

Part No DSS6NC52A102Q91A
Manufacturer Murata Electronics North America
Catalog EMI/RFI Filters (LC, RC Networks)
Description FILTER LC(T) 1000PF TH / LC (T-Type) EMI Filter 3rd Order Low Pass 1 Channel C = 1000pF 6 A Radial - 3 Leads
Datasheet
DSS6NC52A102Q91A Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters - EMI/RFI Filters (LC, RC Networks)
Mfr Murata Electronics
Series EMIFIL®, DSS6
Package Cut Tape (CT)
Product Status Obsolete
Type Low Pass
Filter Order 3rd
Technology LC (T-Type)
Number of Channels 1
Current 6 A
Values C = 1000pF
ESD Protection No
Temperature Range - Operating -25°C ~ 85°C
Applications General Purpose
Voltage - Rated 100V
Mounting Type Through Hole
Package / Case Radial - 3 Leads
Size / Dimension 0.315" L x 0.100" W (8.00mm x 2.54mm)
Height 0.394" (10.00mm)
Base Product Number DSS6NC52A
Standard Package 2,000
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1351379-DSS6NC52A102Q91A
Ultra Librarian 3D Model Ultra Librarian DSS6NC52A102Q91A CAD Model

Description

The Murata Electronics DSS6NC52A102Q91A is a low pass filter that is part of the EMIFIL® DSS6 series.

  • Series: EMIFIL® DSS6
  • Packaging: Cut Tape (CT)
  • Size/Dimension: 0.315" L x 0.100" W (8.00mm x 2.54mm)
  • Voltage Rating: 100V
  • Current: 6A
  • Filter Type: LC (T-Type)
  • Height: 0.394" (10.00mm)
  • Filter Order: 3rd
  • Mounting Type: Through Hole
  • Temperature Range: -25°C ~ 85°C
  • Status: Obsolete
