Same model may have multiple batches, images only for reference.

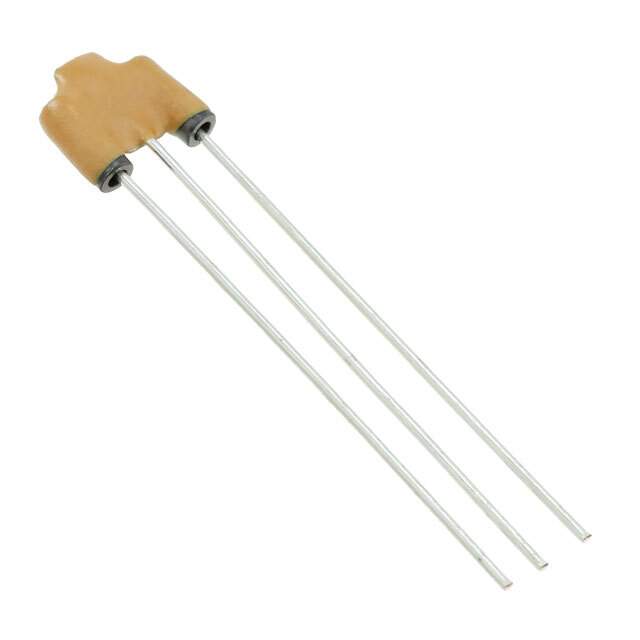

DSS6NZ82A103Q93A Real Image
Same model may have multiple batches, images only for reference.

DSS6NZ82A103Q93A

Part No DSS6NZ82A103Q93A
Manufacturer Murata Electronics North America
Catalog EMI/RFI Filters (LC, RC Networks)
Datasheet
DSS6NZ82A103Q93A Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>EMI/RFI Filters (LC, RC Networks)
Mfr Murata Electronics
Series EMIFIL®, DSS6
Package Cut Tape (CT)
Product Status Obsolete
Type Low Pass
Filter Order 3rd
Technology LC (T-Type)
Number of Channels 1
Current 6 A
Values C = 10000pF
ESD Protection No
Temperature Range - Operating -25°C ~ 85°C
Applications General Purpose
Voltage - Rated 100V
Mounting Type Through Hole
Package / Case Radial - 3 Leads
Dimension 0.315" L x 0.100" W (8.00mm x 2.54mm)
Height 0.394" (10.00mm)
Base Product Number DSS6NZ82A
Other Names 490-11131-1,490-11131-3,DSS6NZ82A103Q93A
Standard Package 2,000
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1276390-DSS6NZ82A103Q93A
Ultra Librarian 3D Model Ultra Librarian DSS6NZ82A103Q93A CAD Model

Description

The Murata Electronics DSS6NZ82A103Q93A is an obsolete EMI/RFI filter designed for general purpose applications.

  • Series: EMIFIL® DSS6
  • Filter Type: Low Pass
  • Package: Cut Tape (CT)
  • Standard Package: 2,000
  • Voltage Rating: 100V
  • Current: 6A
  • Filter Order: 3rd
  • ESD Protection: Not Available
  • Mounting Type: Through Hole
  • Package/Case: Radial - 3 Leads
  • Temperature Range: -25°C to 85°C
