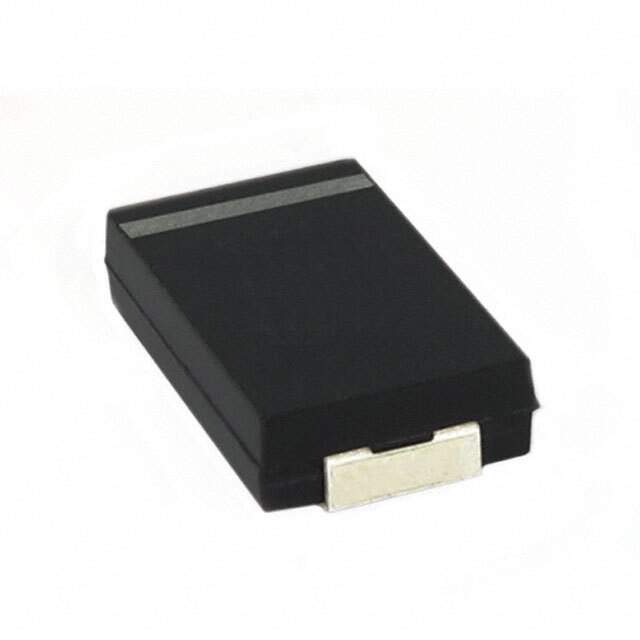

ECASD40J106M055K00 Real Image
Same model may have multiple batches, images only for reference.

ECASD40J106M055K00

Part No ECASD40J106M055K00
Manufacturer Murata Electronics North America
Catalog Aluminum - Polymer Capacitors
Description CAP ALUM POLY 10UF 20% 6.3V SMD / 10 µF 6.3 V Aluminum - Polymer Capacitors 2917 (7343 Metric) 55mOhm 1000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum - Polymer Capacitors
Manufacturer Murata Electronics
Packaging Reel - TR
Product Status Not For New Designs
Type Polymer
Capacitance 10 µF
Tolerance ±20%
Voltage - Rated 6.3 V
ESR (Equivalent Series Resistance) 55mOhm
Lifetime @ Temp. 1000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Applications General Purpose
Ripple Current @ High Frequency 1 A @ 100 kHz
Size / Dimension 0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Max) 0.075" (1.90mm)
Surface Mount Land Size 0.287" L x 0.169" W (7.30mm x 4.30mm)
Mounting Surface Mount
Case / Package 2917 (7343 Metric)
Base Product Number ECASD40J
RoHS Status ROHS3 Compliant
MSL Level 3 (168 Hours)
ECCN EAR99
HTSUS 8532.22.0020
Other Part Number 490-5460-1,490-5460-6,490-5460-2
Standard Package 3,000
Win Source Part Number 1328502-ECASD40J106M055K00
Ultra Librarian 3D Model Ultra Librarian ECASD40J106M055K00 CAD Model

Description

The aluminum-polymer capacitor (1328502-ECASD40J106M055K00) from Murata Electronics is a surface mount type capacitor with a capacitance of 10 μF and a voltage rating of 6.3V.

  • Capacitance: 10 μF
  • Voltage Rating: 6.3V
  • Tolerance: ±20%
  • ESR: 55mOhm
  • Size: 0.287" L x 0.169" W (7.30mm x 4.30mm)
  • Height: 0.075" (1.90mm)
  • Status: Not for new designs
  • Popularity: Low
  • Application: general purpose applications
  • Ripple Current @ High Frequency: 1 A @ 100 kHz
