Same model may have multiple batches, images only for reference.

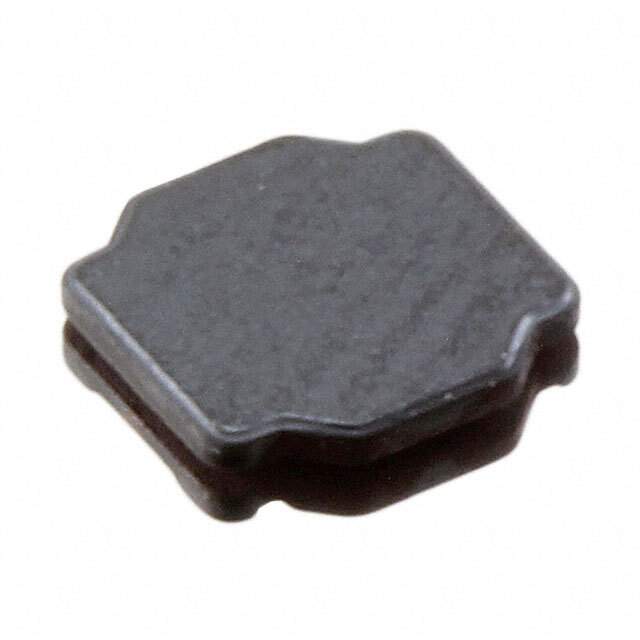

LQH44PN220MJ0L Real Image
Same model may have multiple batches, images only for reference.

LQH44PN220MJ0L

Part No LQH44PN220MJ0L
Manufacturer Murata Electronics North America
Catalog Fixed Inductors
Description FIXED IND 22UH 550MA 576MOHM SMD
Datasheet
LQH44PN220MJ0L Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors
Estimated Pruduction Lead Time 24 Weeks
Features 22 µH Shielded Wirewound Inductor 550 mA 576mOhm Max Nonstandard
Manufacturer Murata Electronics North America
Series LQH44
Package Reel - TR
Operating Temperature Range -40°C ~ 125°C
Mounting Surface Mount
Package Nonstandard
Case / Package 1515 (4040 Metric)
Family Name LQH44PN
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.8000
Other Part Number 490-7775-2, 490-7775-1, 490-7775-6
Quantity per package 1000
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 878088-LQH44PN220MJ0L
Ultra Librarian 3D Model Ultra Librarian LQH44PN220MJ0L CAD Model

Description

The Murata Electronics North America LQH44PN220MJ0L is a Wirewound Inductor that has an inductance of 22 µH and a maximum current rating of 550 mA.

  • Resistance: 576mOhm Max
  • Package: 1515 (4040 Metric)
  • Mounting: Surface Mount
  • Family: LQH44PN
  • Operating Temperature: -40°C to 125°C
  • Supply and Demand Status: Limited
