Same model may have multiple batches, images only for reference.

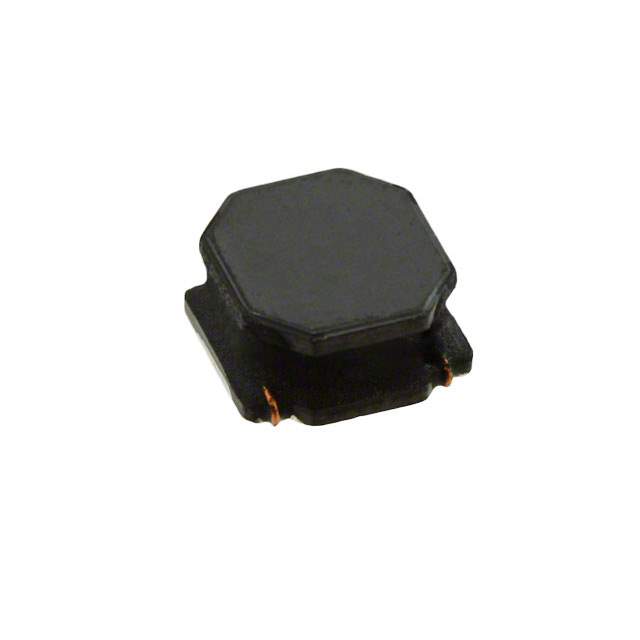

LQH44NN471K03L Real Image
Same model may have multiple batches, images only for reference.

LQH44NN471K03L

Part No LQH44NN471K03L
Manufacturer Murata Electronics North America
Catalog Fixed Inductors
Description Inductance
Datasheet
LQH44NN471K03L Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Murata Electronics North America
Series LQH44
Packaging Reel - TR
Type Wirewound
Material - Core Ferrite
Inductance 470μH
Tolerance ±10%
Current Rating 145mA
Shielding Unshielded
DC Resistance (DCR) 2.899 Ohm Max
Frequency - Self Resonant 2.7MHz
Operating Temperature Range -40°C ~ 85°C
Test Frequency 1kHz
Mounting SMD
Package Nonstandard
Manufacturer Package 1515 (4040 Metric)
Size 0.157" L x 0.157" W (4.00mm x 4.00mm)
Height - Seated (Maximum) 0.177" (4.50mm)
Win Source Part Number 1204384-LQH44NN471K03L
Manufacturer Homepage www.murata.com
Popularity Medium
Supply and Demand Status Limited
Family Name LQH44NN_03
Introduction Date May 22, 2013
ECCN EAR99
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian LQH44NN471K03L CAD Model

Description

The Murata Electronics LQH44NN471K03L is a wirewound inductor that has an operating temperature range of -40°C ~ 85°C.

  • Current Rating: 145mA
  • Inductance: 470μH
  • Mounting: SMD technology
  • Tolerance: ±10%
  • Material-Core: ferrite
  • DC Resistance (DCR): 2.899 Ohm Max
  • Height-Seated (Maximum): 0.177" (4.50mm)
  • Supply and Demand Status: limited
