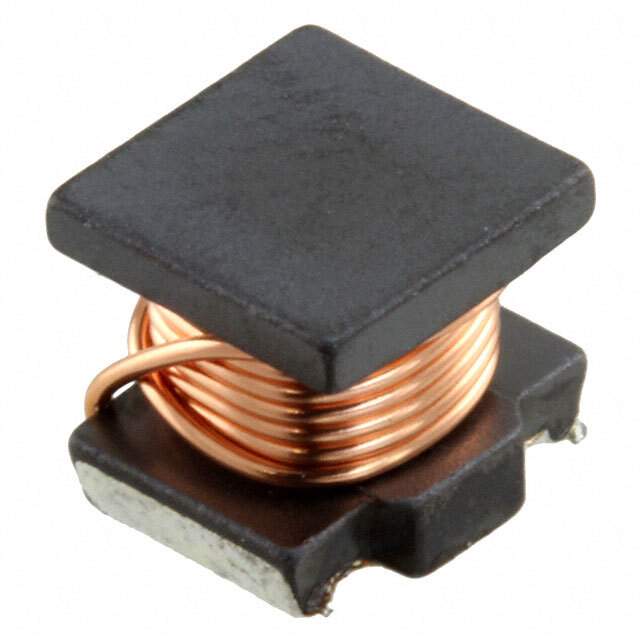

LQH55DN102M03L Real Image
Same model may have multiple batches, images only for reference.

LQH55DN102M03L

Part No LQH55DN102M03L
Manufacturer Murata Electronics North America
Catalog Fixed Inductors
Description FIXED IND 1MH 150MA 10.3 OHM SMD
Datasheet
LQH55DN102M03L Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Murata Electronics North America
Packaging Reel - TR
Status Active
Type Wirewound
Material - Core Ferrite
Inductance 1mH
Tolerance ±20%
Current Rating 150mA
DC Resistance (DCR) 14.42 Ohm Max
Frequency - Self Resonant 1.7MHz
Temperature Range - Operating -40°C to 85°C
Frequency - Test 10kHz
Mounting SMD (SMT)
Height - Seated (Max) 0.197" (5.00mm)
Win Source Part Number 1057229-LQH55DN102M03L
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian LQH55DN102M03L CAD Model

Description

The LQH55DN102M03L is a wirewound inductor manufactured by Murata Electronics North America.

  • Current Rating: 150mA
  • Inductance: 1mH
  • Height: 0.197" (5.00mm)
  • Mounting: SMD (SMT)
  • Tolerance: ±20%
  • Core Material: Ferrite
  • Self-Resonant Frequency: 1.7MHz
  • Test Frequency: 10kHz
  • DCR: 14.42 Ohm Max
  • Category: Inductors, Coils, Chokes
  • Status: Active
  • Operating Temperature: -40°C to 85°C
  • Supply and Demand Status: Limited
