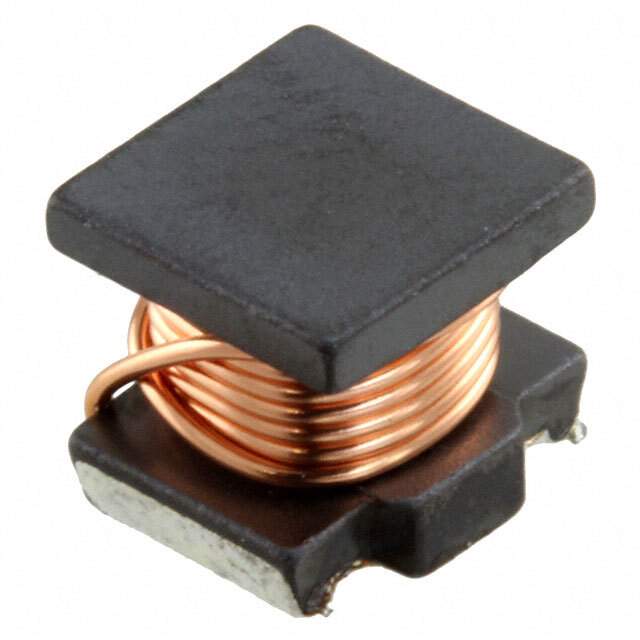

LQH55DN681M03L Real Image
Same model may have multiple batches, images only for reference.

LQH55DN681M03L

Part No LQH55DN681M03L
Manufacturer Murata Electronics North America
Catalog Fixed Inductors
Description FIXED IND 680UH 190MA 8.1 OHM / Inductor Power Chip Unshielded Wirewound 680uH 20% 100KHz Ferrite 0.19A 11.34Ohm DCR 2220 T/R
Datasheet
LQH55DN681M03L Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Murata Electronics North America
Series LQH55
Packaging Reel package
Type Wirewound
Material - Core Ferrite
Inductance 680μH
Tolerance ±20%
Current Rating 190mA
Shielding Unshielded
DC Resistance (DCR) 11.34 Ohm Max
Frequency - Self Resonant 1.9MHz
Operating Temperature Range -40°C ~ 80°C
Test Frequency 100kHz
Mounting SMD
Package 2220 (5750 Metric)
Dimension 0.224" L x 0.197" W (5.70mm x 5.00mm)
Height - Seated (Maximum) 0.197" (5.00mm)
Win Source Part Number 780052-LQH55DN681M03L
Popularity Medium
Supply and Demand Status Limited
Family Name LQH55DN_03
Introduction Date February 23, 2006
ECCN EAR99
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian LQH55DN681M03L CAD Model

Description

The LQH55DN681M03L is a wirewound inductor from Murata Electronics North America.

  • Inductance: 680µH
  • Current Rating: 190mA
  • Shielded: No
  • Package: 2220 (5750 Metric)
  • Mounting: SMD
  • Tolerance: ±20%
  • DC Resistance (DCR): 11.34 Ohm Max
  • Temperature Range: -40°C to 80°C
  • Win Source Part Number: 780052-LQH55DN681M03L
