Same model may have multiple batches, images only for reference.

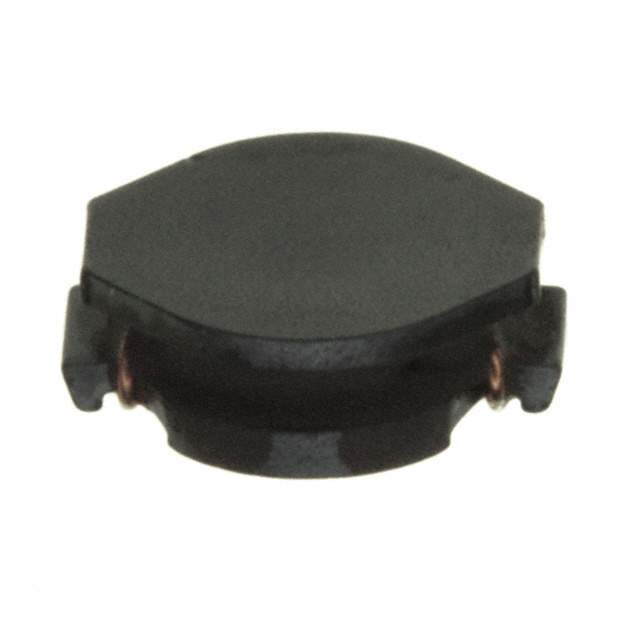

LQH55PN220MR0L Real Image
Same model may have multiple batches, images only for reference.

LQH55PN220MR0L

Part No LQH55PN220MR0L
Manufacturer Murata Electronics North America
Catalog Fixed Inductors
Description FIXED IND 22UH 850MA 260 MOHM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Murata Electronics North America
Packaging Cut Reel
Status Obsolete(EOL)
Type Wirewound
Inductance 22μH
Tolerance ±20%
Current Rating 850mA
Current - Saturation 670mA
DC Resistance (DCR) 260 mOhm
Frequency - Self Resonant 10MHz
Temperature Range - Operating -40°C to 85°C
Frequency - Test 100kHz
Mounting SMD (SMT)
Height - Seated (Max) 0.197" (5.00mm)
Win Source Part Number 1057236-LQH55PN220MR0L
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian LQH55PN220MR0L CAD Model

Description

The Murata Electronics North America 1057236-LQH55PN220MR0L is a wirewound inductor that has a current rating of 850mA and inductance of 22μH.

  • Type: Wirewound
  • Current Rating: 850mA
  • Inductance: 22μH
  • Height: 0.197" (5.00mm)
  • Mounting: SMD (SMT)
  • Tolerance: ±20%
  • DC Resistance (DCR): 260 mOhm
  • Category: Inductors, Coils, and Chokes
  • Popularity: Medium
  • Supply and Demand Status: Balanced
