Same model may have multiple batches, images only for reference.

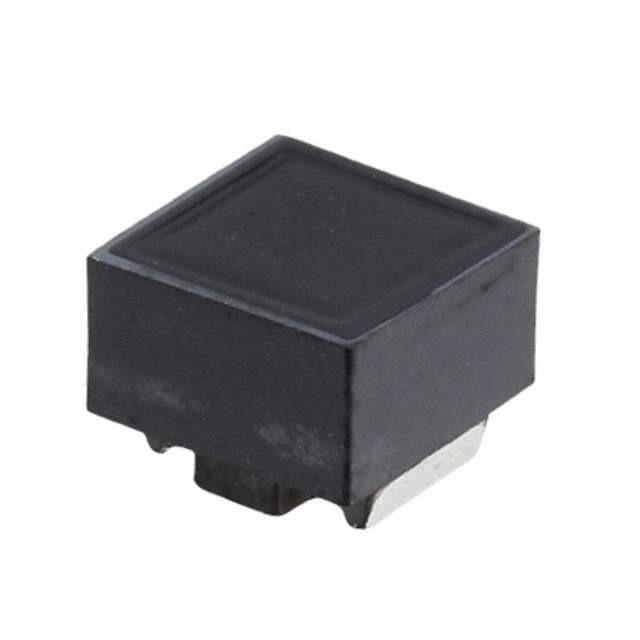

LQH66SN221M03L Real Image
Same model may have multiple batches, images only for reference.

LQH66SN221M03L

Part No LQH66SN221M03L
Manufacturer Murata Electronics North America
Catalog Fixed Inductors
Description FIXED IND 220UH 350MA 790 MOHM / Inductor Power Chip Shielded Wirewound 220uH 20% 100KHz Ferrite 0.35A 1.106Ohm DCR 2525 T/R
Datasheet
LQH66SN221M03L Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Murata Electronics North America
Series LQH66
Packaging Reel package
Type Wirewound
Material - Core Ferrite
Inductance 220μH
Tolerance ±20%
Current Rating 350mA
Shielding Shielded
DC Resistance (DCR) 1.106 Ohm Max
Frequency - Self Resonant 4MHz
Operating Temperature Range -40°C ~ 80°C
Test Frequency 100kHz
Mounting SMD
Package Nonstandard
Dimension 0.248" L x 0.248" W (6.30mm x 6.30mm)
Height - Seated (Maximum) 0.197" (5.00mm)
Win Source Part Number 780055-LQH66SN221M03L
Popularity Medium
Supply and Demand Status Limited
Family Name LQH66SN_03
Introduction Date February 23, 2006
ECCN EAR99
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian LQH66SN221M03L CAD Model

Description

The LQH66SN221M03L is a wirewound type inductor manufactured by Murata Electronics North America.

  • Current Rating: 350mA
  • Inductance: 220μH
  • Shielded: Yes
  • Operating Temperature Range: -40°C to 80°C
  • Package: nonstandard package
  • Dimension: 0.248" L x 0.248" W (6.30mm x 6.30mm)
