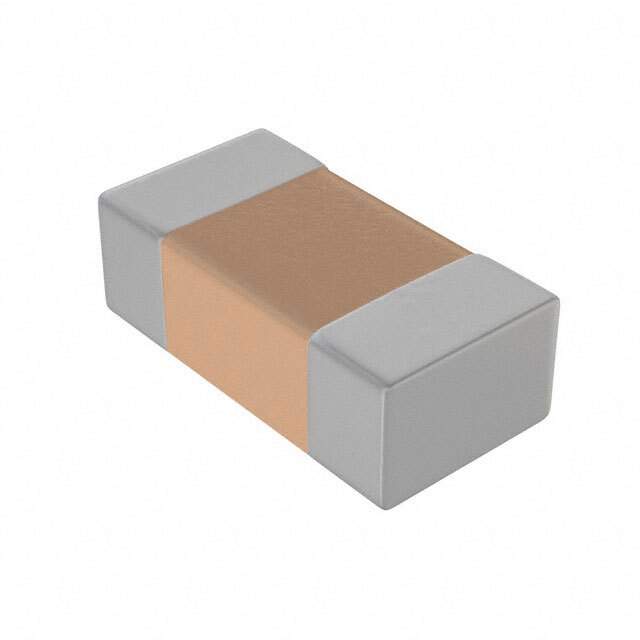

LQM18PN1R5NB0L Real Image
Same model may have multiple batches, images only for reference.

LQM18PN1R5NB0L

Part No LQM18PN1R5NB0L
Manufacturer Murata Electronics North America
Catalog Fixed Inductors
Description FIXED IND 1.5UH 600MA 438MOHM SM / 1.5 µH Shielded Multilayer Inductor 600 mA 438mOhm Max 0603 (1608 Metric)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Murata Electronics
Series LQM18
Package Tape & Reel
Type Multilayer
Material - Core Ferrite
Inductance 1.5 µH
Tolerance ±30%
Current Rating (Amps) 600 mA
Shielding Shielded
DC Resistance (DCR) 438mOhm Max
Frequency - Self Resonant 50MHz
Temperature Range - Operating -55°C ~ 125°C
Inductance Frequency - Test 1 MHz
Mounting SMD (SMT)
Package / Case 0603 (1608 Metric)
Supplier Device Package 0603 (1608 Metric)
Dimension 0.063" L x 0.031" W (1.60mm x 0.80mm)
Height - Seated (Max) 0.016" (0.40mm)
Base Product Number LQM18PN
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.8000
Other Names LQM18PN1R5NB0L-ND,490-11715-6,490-11715-1,490-11715-2
Standard Package 4,000
Win Source Part Number 975413-LQM18PN1R5NB0L
Ultra Librarian 3D Model Ultra Librarian LQM18PN1R5NB0L CAD Model

Description

The Murata Electronics LQM18PN1R5NB0L is a fixed inductor with a multilayer type and a shielding feature.

  • Manufacturer: Murata Electronics
  • Type: Fixed inductor, multilayer, shielded
  • Inductance: 1.5 μH
  • Tolerance: ±30%
  • DC Resistance (DCR): 438mOhm max
  • Frequency Self-Resonant: 50MHz
  • Current Rating: 600mA
  • Package: 0603 (1608 Metric)
  • Temperature Range: -55°C to 125°C
