Same model may have multiple batches, images only for reference.

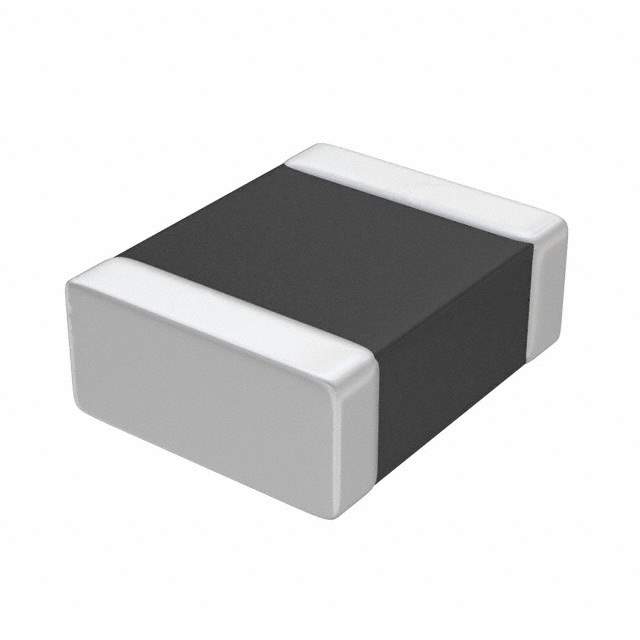

LQM2HPN1R0MJHL Real Image
Same model may have multiple batches, images only for reference.

LQM2HPN1R0MJHL

Part No LQM2HPN1R0MJHL
Manufacturer Murata Electronics North America
Catalog Fixed Inductors
Description FIXED IND 1UH 2.3A 63 MOHM SMD / 1 µH Shielded Multilayer Inductor 2.3 A 63mOhm Max 1008 (2520 Metric)
Datasheet
LQM2HPN1R0MJHL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Murata Electronics
Series LQM2
Package Tape & Reel
Type Multilayer
Material - Core Ferrite
Inductance 1 µH
Tolerance ±20%
Current Rating (Amps) 2.3 A
Current - Saturation (Isat) 2.1A
Shielding Shielded
DC Resistance (DCR) 63mOhm Max
Frequency - Self Resonant 50MHz
Temperature Range - Operating -40°C ~ 85°C
Inductance Frequency - Test 1 MHz
Mounting SMD (SMT)
Package / Case 1008 (2520 Metric)
Supplier Device Package 1008 (2520 Metric)
Dimension 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max) 0.047" (1.20mm)
Base Product Number LQM2HPN
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.8000
Other Names 490-12068-6,490-12068-1,LQM2HPN1R0MJHL-ND,490-12068-2
Standard Package 3,000
Win Source Part Number 1016772-LQM2HPN1R0MJHL
Ultra Librarian 3D Model Ultra Librarian LQM2HPN1R0MJHL CAD Model

Description

The LQM2HPN1R0MJHL is a fixed inductor manufactured by Murata Electronics.

  • Series: LQM2 series
  • Type: multilayer type with a shielding feature
  • Inductance: 1 µH
  • Tolerance: ±20%
  • Package: tape & reel
  • Standard Package: 3,000
  • Mounting: SMD (SMT) mountable
  • Core Material: ferrite core material
  • Dimension: 0.098" L x 0.079" W (2.50mm x 2.00mm)
  • DC Resistance (DCR): 63mOhm Max
  • Operating Temperature Range: -40°C ~ 85°C
  • Current Rating: 2.3 A
  • Inductance Frequency-Test: 1 MHz
  • Other Names: 490-12068-6,490-12068-1,LQM2HPN1R0MJHL-ND,490-12068-2
