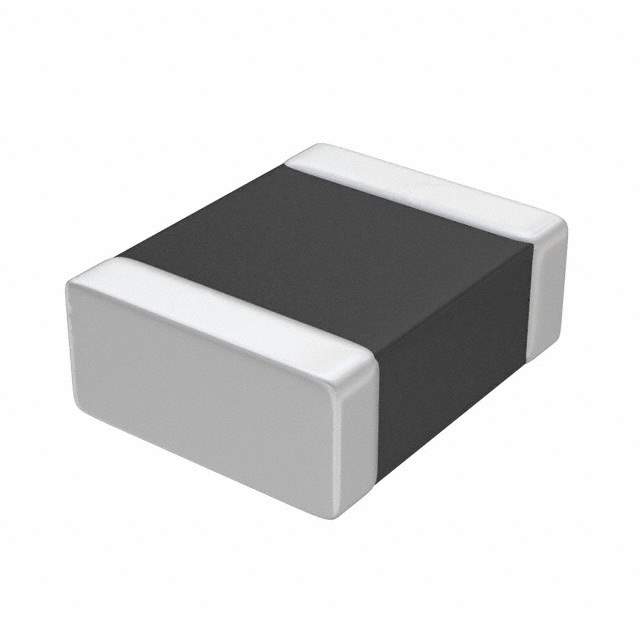

LQM2HPNR56ME0L Real Image
Same model may have multiple batches, images only for reference.

LQM2HPNR56ME0L

Part No LQM2HPNR56ME0L
Manufacturer Murata Electronics North America
Catalog Fixed Inductors
Description FIXED IND 560NH 1.5A 75 MOHM SMD
Datasheet
LQM2HPNR56ME0L Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors
Estimated Pruduction Lead Time 20 Weeks
Features 560 nH Shielded Multilayer Inductor 1.5 A 75mOhm Max 1008 (2520 Metric)
Manufacturer Murata Electronics North America
Series LQM2
Package Reel - TR
Operating Temperature Range -55°C ~ 125°C
Mounting Surface Mount
Package 1008 (2520 Metric)
Case / Package 1008 (2520 Metric)
Family Name LQM2HPN
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.8000
Quantity per package 3000
Popularity High
Supply and Demand Status Balance
Win Source Part Number 923811-LQM2HPNR56ME0L
Ultra Librarian 3D Model Ultra Librarian LQM2HPNR56ME0L CAD Model

Description

The Murata Electronics North America LQM2HPNR56ME0L inductor is a high-quality component that offers a shielded multilayer inductor with 560 nH, 1.5 A, and 75mOhm Max.

  • Operating Temperature Range: -55°C to 125°C
  • Package: Surface Mount
  • Applications: Inductors
  • Package: 1008 (2520 Metric)
  • Supplied On: Reel
