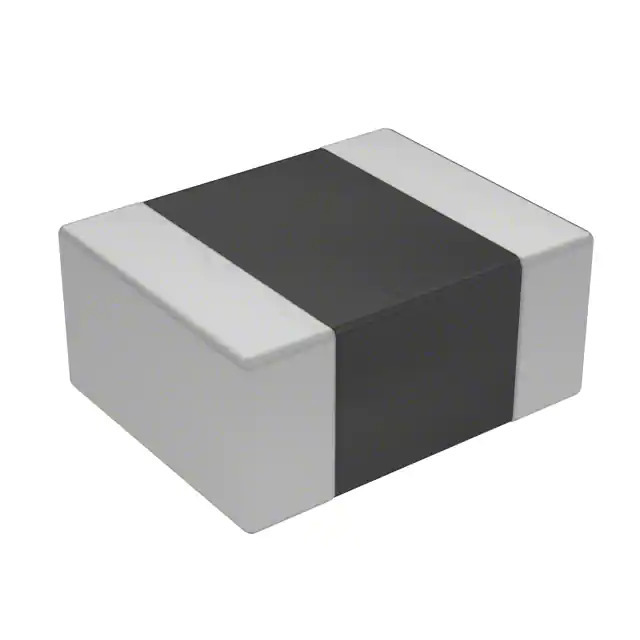

Same model may have multiple batches, images only for reference.
LQM2MPN2R2MEHL Murata Electronics North America
Same model may have multiple batches, images only for reference.

LQM2MPN2R2MEHL

Part No LQM2MPN2R2MEHL
Manufacturer Murata Electronics North America
Catalog Fixed Inductors
Description FIXED IND 2.2UH 1.3A 188MOHM SMD
Datasheet
LQM2MPN2R2MEHL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Murata Electronics
Series LQM2
Package Tape & Reel
Product Status Active
Type Multilayer
Material - Core Ferrite
Inductance 2.2 µH
Tolerance ±20%
Current Rating (Amps) 1.3 A
Current - Saturation (Isat) 800mA
Shielding Shielded
DC Resistance (DCR) 188mOhm Max
Q @ Freq -
Frequency - Self Resonant 30MHz
Ratings -
Temperature Range - Operating -40°C ~ 85°C
Inductance Frequency - Test 1 MHz
Mounting Type Surface Mount
Package / Case 0806 (2016 Metric)
Supplier Device Package 0806 (2016 Metric)
Size / Dimension 0.079" L x 0.063" W (2.00mm x 1.60mm)
Height - Seated (Max) 0.031" (0.80mm)
Base Product Number LQM2MPN
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1370223-LQM2MPN2R2MEHL
Ultra Librarian 3D Model Ultra Librarian LQM2MPN2R2MEHL CAD Model

Description

The LQM2MPN2R2MEHL is a multilayer inductor from Murata Electronics.

  • Series: LQM2
  • Package: 0806 (2016 Metric)
  • Temperature Range: -40°C to 85°C
  • Inductance: 2.2 µH
  • Current Rating: 1.3 A
  • Core Material: Ferrite
  • Shielding: Shielded
  • DC Resistance: 188mOhm Max
  • Saturation Current: 800mA
  • Tolerance: ±20%
  • Mounting Type: Surface Mount
  • Size: 0.079" L x 0.063" W (2.00mm x 1.60mm)
  • Height: 0.031" (0.80mm)
