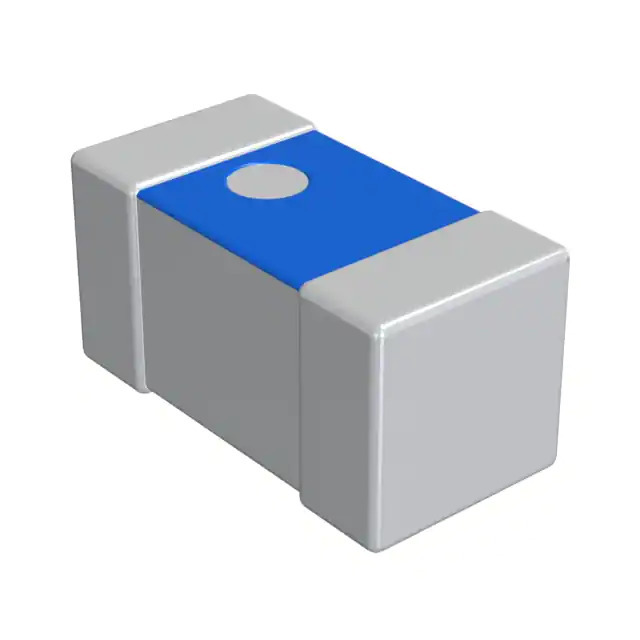

LQP02TN15NJ02D

Name: LQP02TN15NJ02D
Brand: Murata Electronics North America
SKU: 1369487
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	LQP02TN15NJ02D
Manufacturer	Murata Electronics North America
Catalog	Fixed Inductors
Description	FIXED IND 15NH 140MA 3.2 OHM SMD
Datasheet	LQP02TN15NJ02D Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes - Fixed Inductors
Mfr	Murata Electronics
Series	LQP02
Package	Tape & Reel
Product Status	Active
Type	Thick Film
Material - Core	Non-Magnetic
Inductance	15 nH
Tolerance	±5%
Current Rating (Amps)	140 mA
Current - Saturation (Isat)	-
Shielding	Unshielded
DC Resistance (DCR)	3.2Ohm Max
Q @ Freq	7 @ 500MHz
Frequency - Self Resonant	3GHz
Ratings	-
Temperature Range - Operating	-55°C ~ 125°C
Inductance Frequency - Test	500 MHz
Mounting Type	Surface Mount
Package / Case	01005 (0402 Metric)
Supplier Device Package	01005 (0402 Metric)
Size / Dimension	0.016" L x 0.008" W (0.40mm x 0.20mm)
Height - Seated (Max)	0.009" (0.23mm)
Base Product Number	LQP02TN
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.8000
Win Source Part Number	1369487-LQP02TN15NJ02D
Ultra Librarian 3D Model	Ultra Librarian LQP02TN15NJ02D CAD Model

Alternative Products

Description

The LQP02TN15NJ02D is a fixed inductor from Murata Electronics.

Series: LQP02
Inductance: 15 nH ±5%
Mounting Type: Surface Mount
Package Size: 01005 (0402 Metric)
Dimensions: 0.016" L x 0.008" W (0.40mm x 0.20mm)
Height: 0.009" (0.23mm) Max
Temperature Range: -55°C to 125°C
Shielding: Unshielded
Q Value: 7 @ 500MHz
DC Resistance: 3.2Ohm Max
Current Rating: 140mA
Packaging: Tape and Reel
REACH: Unaffected
