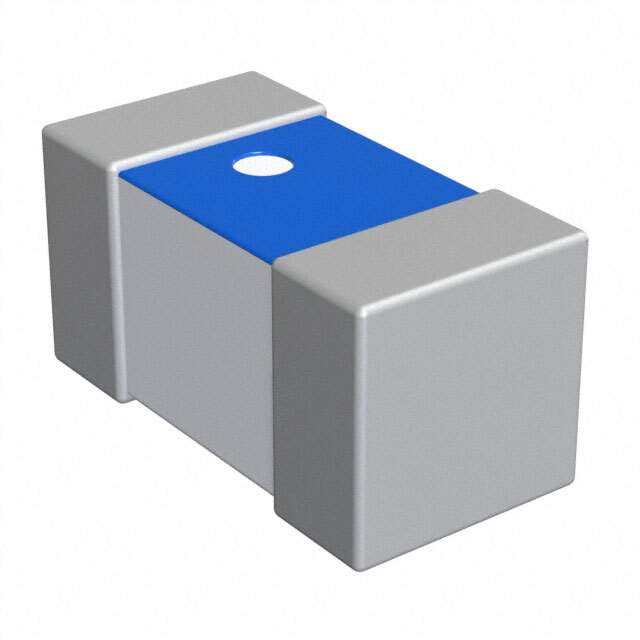

The LQP03TG15NH02D is a high-frequency inductor from Murata Electronics North America. This inductor is designed for use in RF and microwave applications, offering a small size and high Q-factor. It has an inductance of 15nH with a tolerance of ±3% and is available in a compact 0201 package. The LQP03TG15NH02D is suitable for impedance matching, filtering, and tuning in wireless communication circuits.

Applications:

• RF impedance matching: Used to match the impedance of RF components and circuits.
• RF filtering: Employed in low-pass, high-pass, and band-pass filters.
• Tuning circuits: Used to tune the resonant frequency of oscillators and amplifiers.
• Wireless communication: Found in smartphones, tablets, and other wireless devices.
• Satellite communication: Suitable for use in satellite transceivers and amplifiers.

Features:

• High Q-factor: Provides excellent performance in high-frequency circuits.
• Compact size: The 0201 package allows for high-density circuit design.
• Tight tolerance: Offers a tolerance of ±3% for precise inductance values.
• Multilayer construction: Ensures robust construction and long-term reliability.
• RoHS compliant: Environmentally friendly and compliant with RoHS standards.

Benefits:

• Improved circuit performance: The high Q-factor and tight tolerance contribute to accurate circuit operation.
• Reduced component count: The small size enables more compact and efficient circuit designs.
• Enhanced reliability: The multilayer construction provides long-term stability and durability.
• Cost-effective solution: Offers a balance of performance and affordability.
• Ease of use: The 0201 package is compatible with standard SMT assembly processes.

Additional Details:

The LQP03TG15NH02D has a self-resonant frequency (SRF) of approximately 4 GHz and a DC resistance (DCR) of typically 0.2 ohms. It is designed to operate within a temperature range of -55°C to +125°C. The inductor is constructed using a ceramic core and metal electrodes, ensuring excellent electrical performance and mechanical strength. The termination finish is typically nickel barrier with tin plating, providing good solderability. The 0201 package has dimensions of 0.6mm x 0.3mm x 0.3mm.
