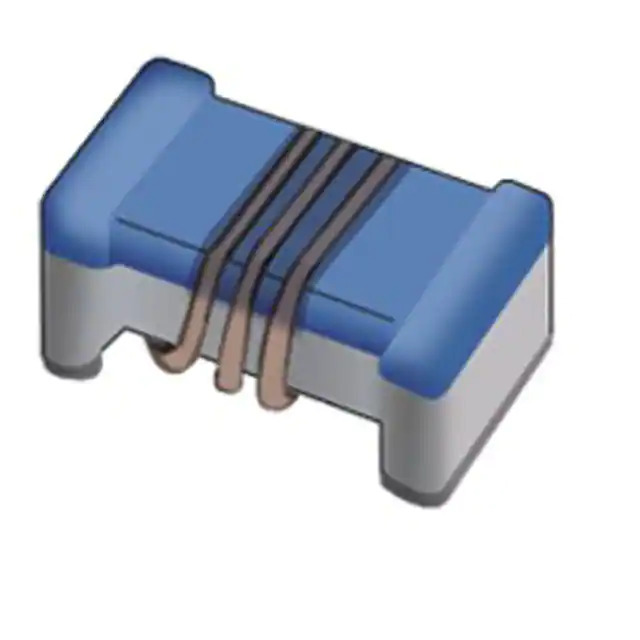

LQW15AN3N9G80D Murata Electronics North America
Same model may have multiple batches, images only for reference.

LQW15AN3N9G80D

Part No LQW15AN3N9G80D
Manufacturer Murata Electronics North America
Catalog Fixed Inductors
Description FIXED IND
Datasheet
LQW15AN3N9G80D Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Murata Electronics
Series LQW15
Package Tape & Reel
Product Status Active
Type Wirewound
Material - Core Non-Magnetic
Inductance 3.9 nH
Tolerance ±2%
Current Rating (Amps) 1.95 A
Current - Saturation (Isat) -
Shielding Unshielded
DC Resistance (DCR) 70mOhm Max
Q @ Freq 25 @ 250MHz
Frequency - Self Resonant 10GHz
Ratings -
Temperature Range - Operating -55°C ~ 125°C
Inductance Frequency - Test 100 MHz
Features -
Mounting Type Surface Mount
Package / Case 0402 (1005 Metric)
Supplier Device Package 0402
Size / Dimension 0.039" L x 0.024" W (1.00mm x 0.60mm)
Height - Seated (Max) 0.024" (0.60mm)
Base Product Number LQW15AN
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1369495-LQW15AN3N9G80D
Ultra Librarian 3D Model Ultra Librarian LQW15AN3N9G80D CAD Model

Description

The LQW15AN3N9G80D is a fixed inductor from Murata Electronics.

  • Series: LQW15
  • Inductance: 3.9 nH
  • Tolerance: ±2%
  • Current Rating: 1.95 A
  • Mounting Type: Surface Mountable
  • Package Size: 0402 (1005 Metric)
  • Temperature Range: -55°C to 125°C
  • Height: 0.024" (0.60mm)
  • Size: 0.039" L x 0.024" W (1.00mm x 0.60mm)
  • REACH: Unaffected
  • ECCN: EAR99
