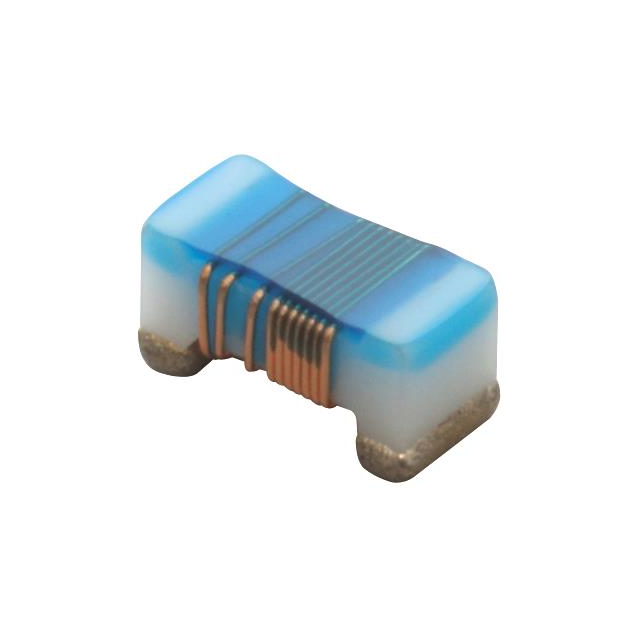

LQW18AN20NG00D

Name: LQW18AN20NG00D
Brand: Murata Electronics North America
SKU: 191922
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	LQW18AN20NG00D
Manufacturer	Murata Electronics North America
Catalog	Fixed Inductors
Description	FIXED IND 20NH 550MA 160 MOHM
Datasheet	LQW18AN20NG00D Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Manufacturer	Murata Electronics North America
Packaging	Reel - TR
Status	Active
Type	Wirewound
Material - Core	Non-Magnetic
Inductance	20nH
Tolerance	±2%
Current Rating	550mA
DC Resistance (DCR)	160 mOhm Max
Q @ Freq	40 @ 250MHz
Frequency - Self Resonant	4.9GHz
Temperature Range - Operating	-55°C to 125°C
Frequency - Test	100MHz
Mounting	SMD (SMT)
Case / Package	0603 (1608 Metric)
Height - Seated (Max)	0.039" (1.00mm)
Win Source Part Number	072114-LQW18AN20NG00D
Ultra Librarian 3D Model	Ultra Librarian LQW18AN20NG00D CAD Model

Alternative Products

Description

The Murata Electronics North America LQW18AN20NG00D is an active electronic component. It is a wirewound type with a current rating of 550mA and an inductance of 20nH.

Tolerance: ±2%
DC Resistance (DCR): 160 mOhm max
Material-Core: Non-magnetic
Q @ Freq: 40 @ 250MHz
Frequency Self-Resonant: 4.9GHz
Frequency Test: 100MHz
Case/Package: 0603 (1608 Metric)
Height Seated (max): 0.039" (1.00mm)
Mounting: SMD (SMT)
Operating Temperature Range: -55°C to 125°C
