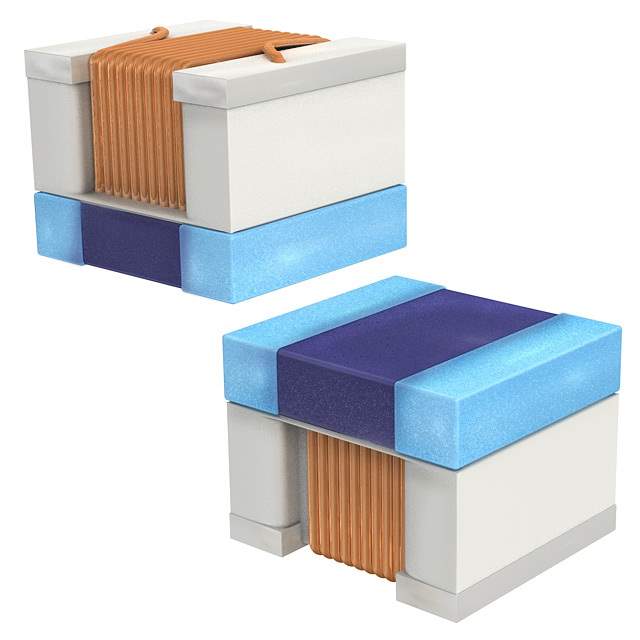

The LQW2BAS10NJ00L is a wire-wound inductor from Murata Electronics North America, designed for use in high-frequency applications. It is particularly well-suited for impedance matching, filtering, and resonance circuits. With its small size and excellent electrical characteristics, it finds applications in a wide range of electronic devices, including mobile phones, wireless communication equipment, and RF modules.

Applications:

• Impedance Matching
• High-Frequency Filtering
• Resonance Circuits
• Mobile Phones
• Wireless Communication Equipment
• RF Modules
• Bluetooth Devices
• Wi-Fi Devices

Features:

• Inductance: 10nH
• Tolerance: ±5%
• Self-Resonant Frequency: 2.5 GHz (typical)
• Q-Factor: 25 (typical) at 250 MHz
• Rated Current: 300mA
• DC Resistance: 0.25Ω (typical)
• Operating Temperature: -55°C to +125°C
• Size: 0603 (1.6mm x 0.8mm)

Benefits:

• Provides a precise inductance value for accurate circuit performance.
• Offers excellent high-frequency characteristics for optimal signal integrity.
• High Q-factor minimizes signal loss and improves circuit efficiency.
• Compact size allows for dense circuit board designs.
• Wide operating temperature range ensures reliable performance in various environments.
• Suitable for high-current applications with a rated current of 300mA.

Additional Details:

The LQW2BAS10NJ00L inductor features a wire-wound construction that provides a high Q-factor and excellent self-resonant frequency. The tight tolerance of ±5% ensures consistent performance across different devices. The inductor's small 0603 size makes it ideal for space-constrained applications. It is designed to operate reliably over a wide temperature range, making it suitable for use in harsh environments.

The inductor is commonly used in impedance matching networks to ensure efficient power transfer between different circuit stages. It is also used in high-frequency filters to attenuate unwanted signals. In resonance circuits, it provides the necessary inductance for creating resonant frequencies. The LQW2BAS10NJ00L is a versatile and reliable inductor for a wide range of high-frequency applications.
