Same model may have multiple batches, images only for reference.

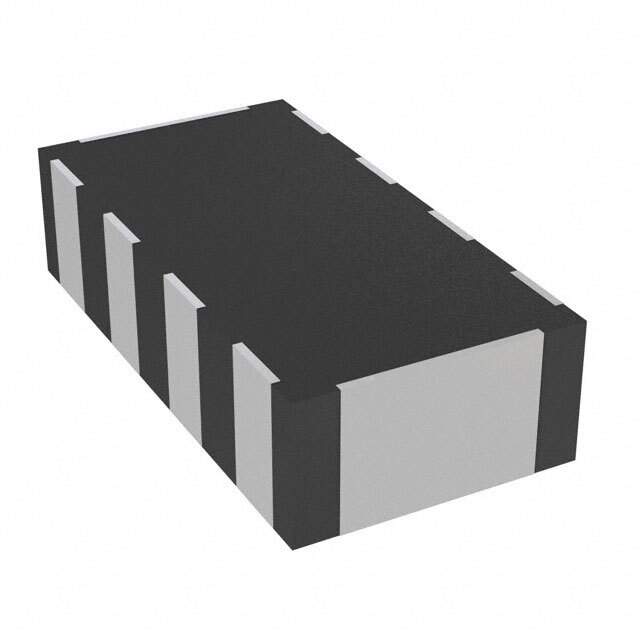

NFA31GD1004704D Real Image
Same model may have multiple batches, images only for reference.

NFA31GD1004704D

Part No NFA31GD1004704D
Manufacturer Murata Electronics North America
Catalog EMI/RFI Filters (LC, RC Networks)
Description FILTER RC 47 OHM/10PF SMD
Datasheet
NFA31GD1004704D Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer Murata Electronics North America
Packaging Reel - TR
Type Low Pass
Filter Order 1st
Technology RC
Number of Channels 4
Resistance - Channel (Ohms) 47
Current 20mA
Values R = 47 Ohms, C = 10pF
ESD Protection No
Temperature Range - Operating -40°C to 85°C
Applications General Purpose
Voltage Rating 6V
Mounting SMD (SMT)
Dimension 0.126" L x 0.063" W (3.20mm x 1.60mm)
Height 0.039" (1.00mm)
Win Source Part Number 025220-NFA31GD1004704D
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian NFA31GD1004704D CAD Model

Description

The Murata Electronics North America electronic component is a high-quality product that is designed to meet various requirements.

  • Manufacturer: Murata Electronics North America
  • Brand: Murata Electronics North America
  • Part Number: 025220-NFA31GD1004704D
  • Category: Filters
  • Supply and Demand Status: Sufficient
